ASPIRE 12 Station Multi Gym

ASPIRE 12 Station Multi Gym – view 1 – Bench Fitness

Price on application

Made to order, enquire for lead time

Our sales team will come back to you within one business day.

  • Made to Order. Enquire for leadtime
  • Twelve stations in one connected system
  • Four pull-up bars across two bridges
  • Four adjustable pulleys in the standard layout

Australian designed

Equipping gyms in 20+ countries

Custom colours and branding available

Description

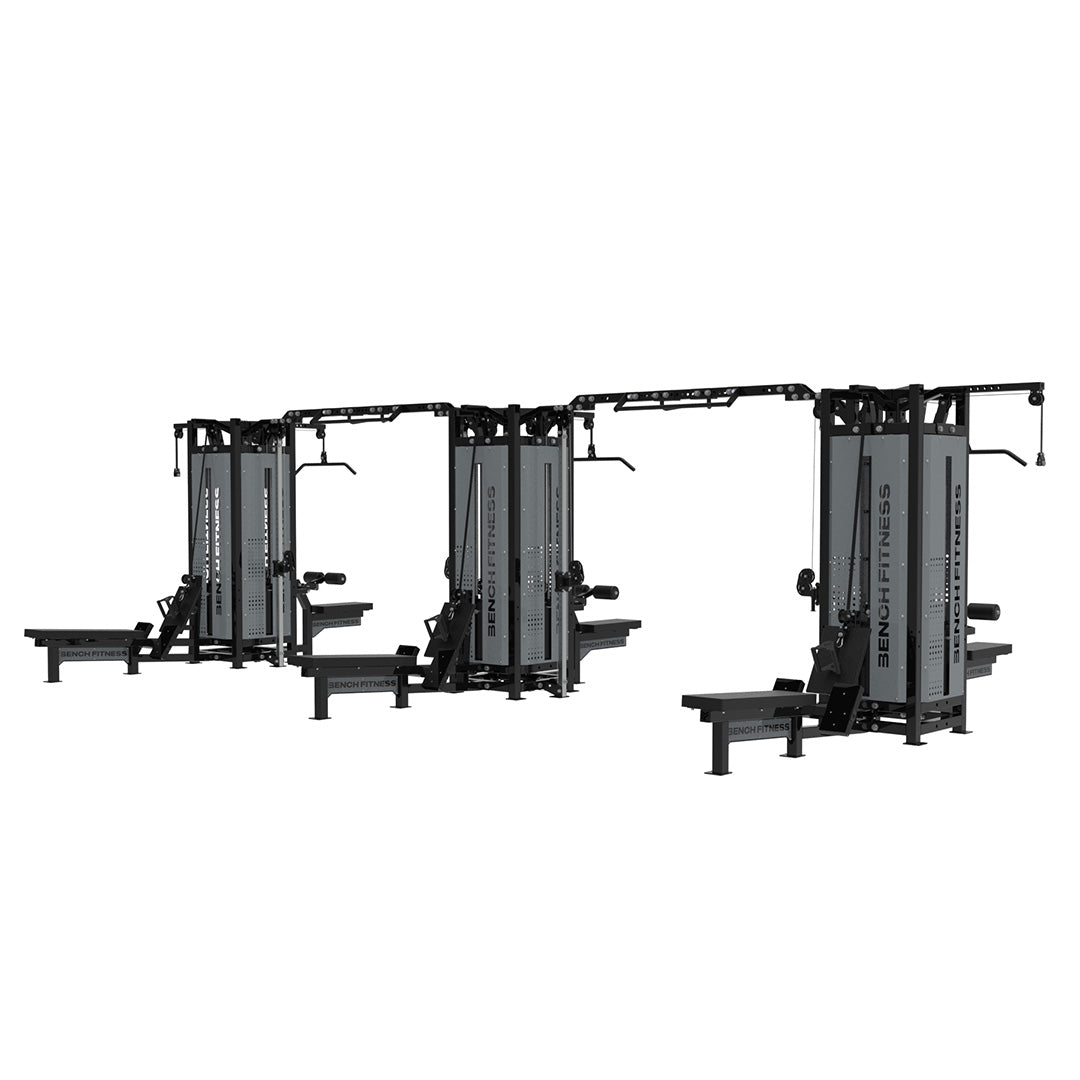

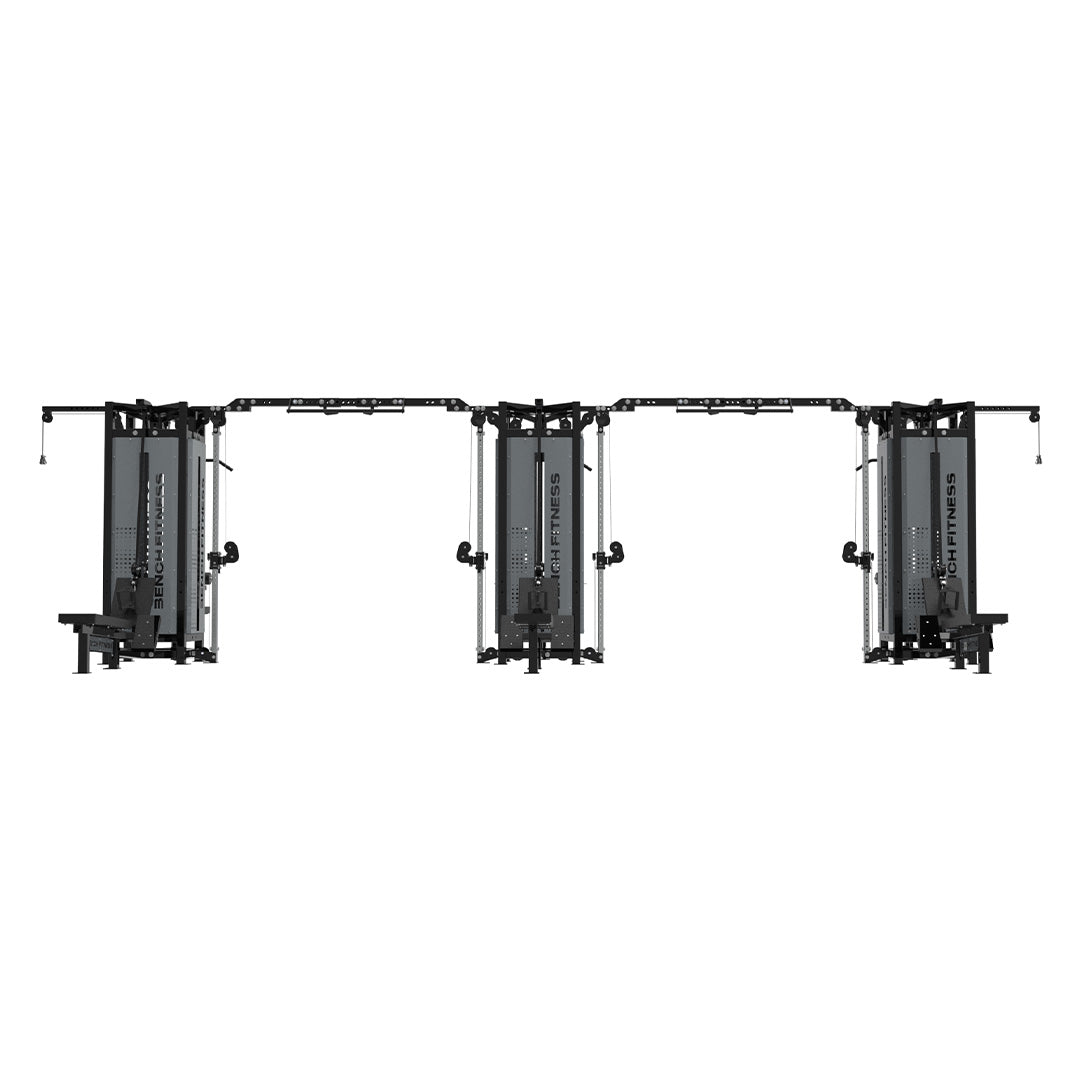

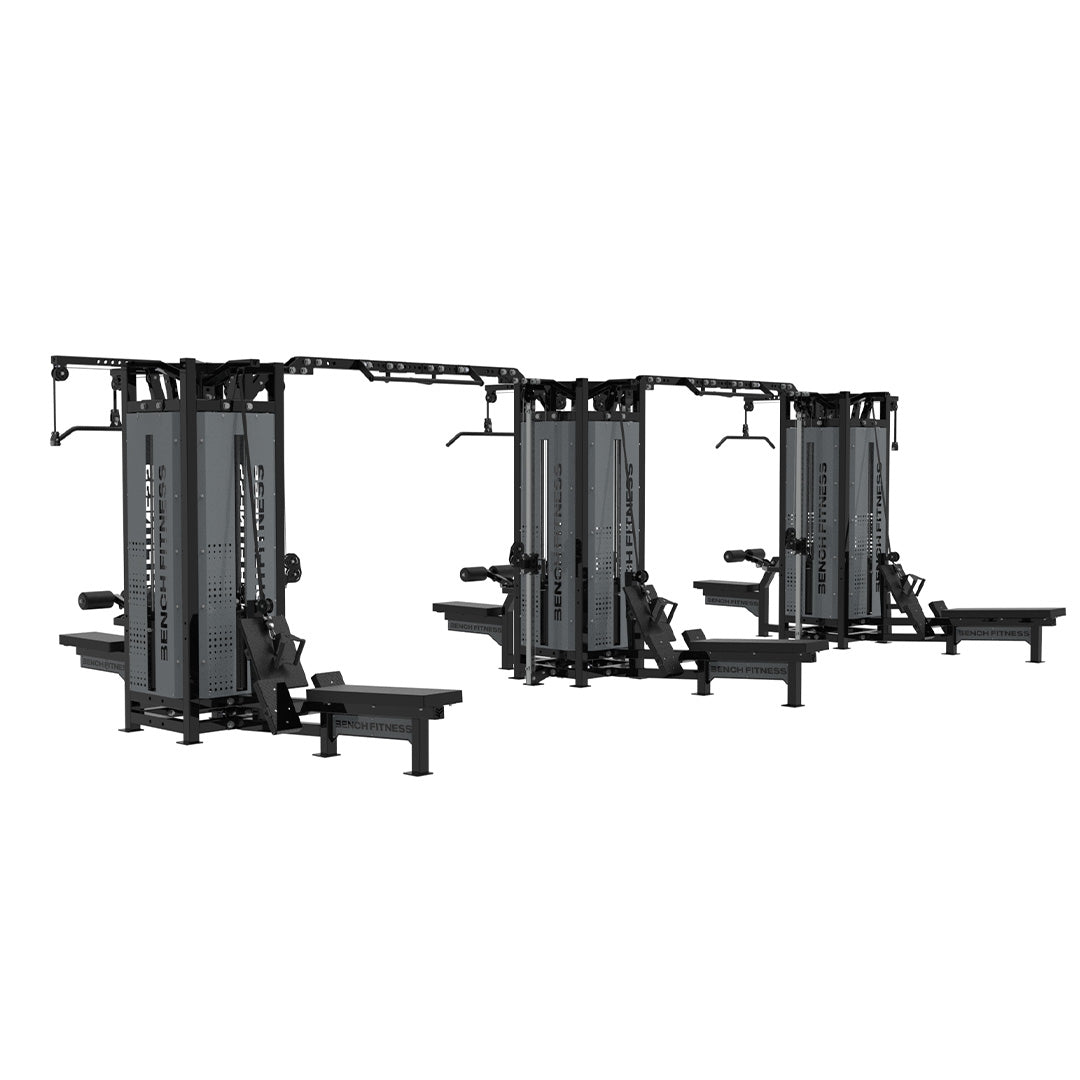

Twelve-station pin-loaded multi gym built from three 4-way frames for high-volume floors.

The ASPIRE 12 Station Multi Gym is the largest configuration in the ASPIRE range. Three 4-way frames are joined by two bridges into a single 9487mm run, giving twelve stations and four pull-up bars for gyms with heavy peak-hour traffic.

Standard configuration is three Lat Pulldown, three Seated Row, four Adjustable Pulley and two Tricep Pushdown stations. Each frame is modular, so the station mix can be changed to suit the floor. Pulldown and Row run 150kg weight stacks; Tricep and Adjustable Pulley run 115kg. Pulldown, Row and Tricep are belt-driven.

The two bridges each carry two pull-up bars with multiple grip options and accept future pull-up attachments. Cover panels are optional. The main frame is 75mm x 75mm steel tube. The system is 3981mm wide, stands 2510mm high and weighs 2384kg. Built by Bench in Thailand.

Features

  • Standard stations: 3x Lat Pulldown, 3x Seated Row, 4x Adjustable Pulley, 2x Tricep Pushdown
  • 150kg weight stacks on Pulldown and Row
  • 115kg weight stacks on Tricep and Adjustable Pulley
  • Belt drive on Pulldown, Row and Tricep
  • Four pull-up bars across two bridges
  • 75mm x 75mm steel tube main frame

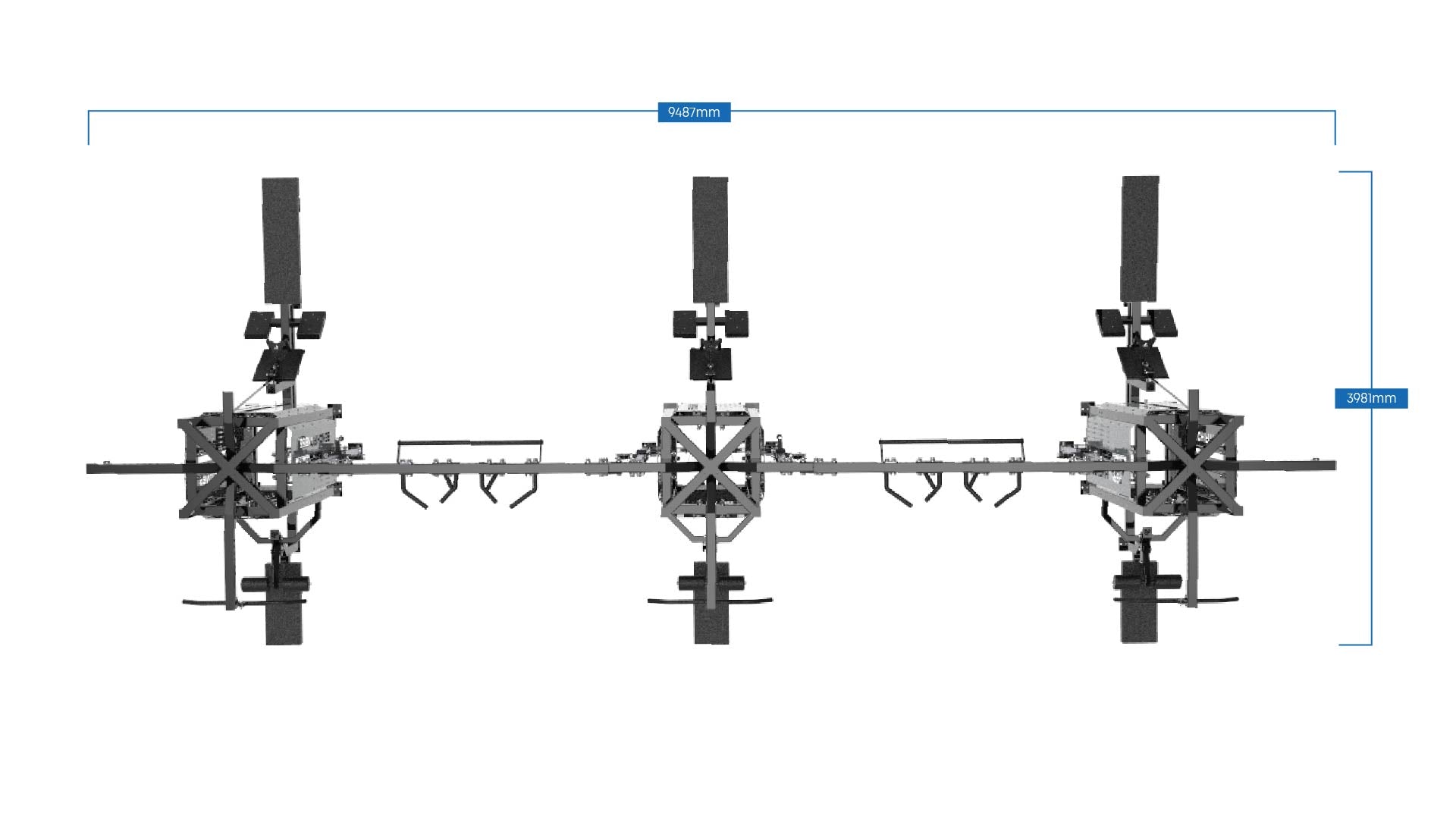

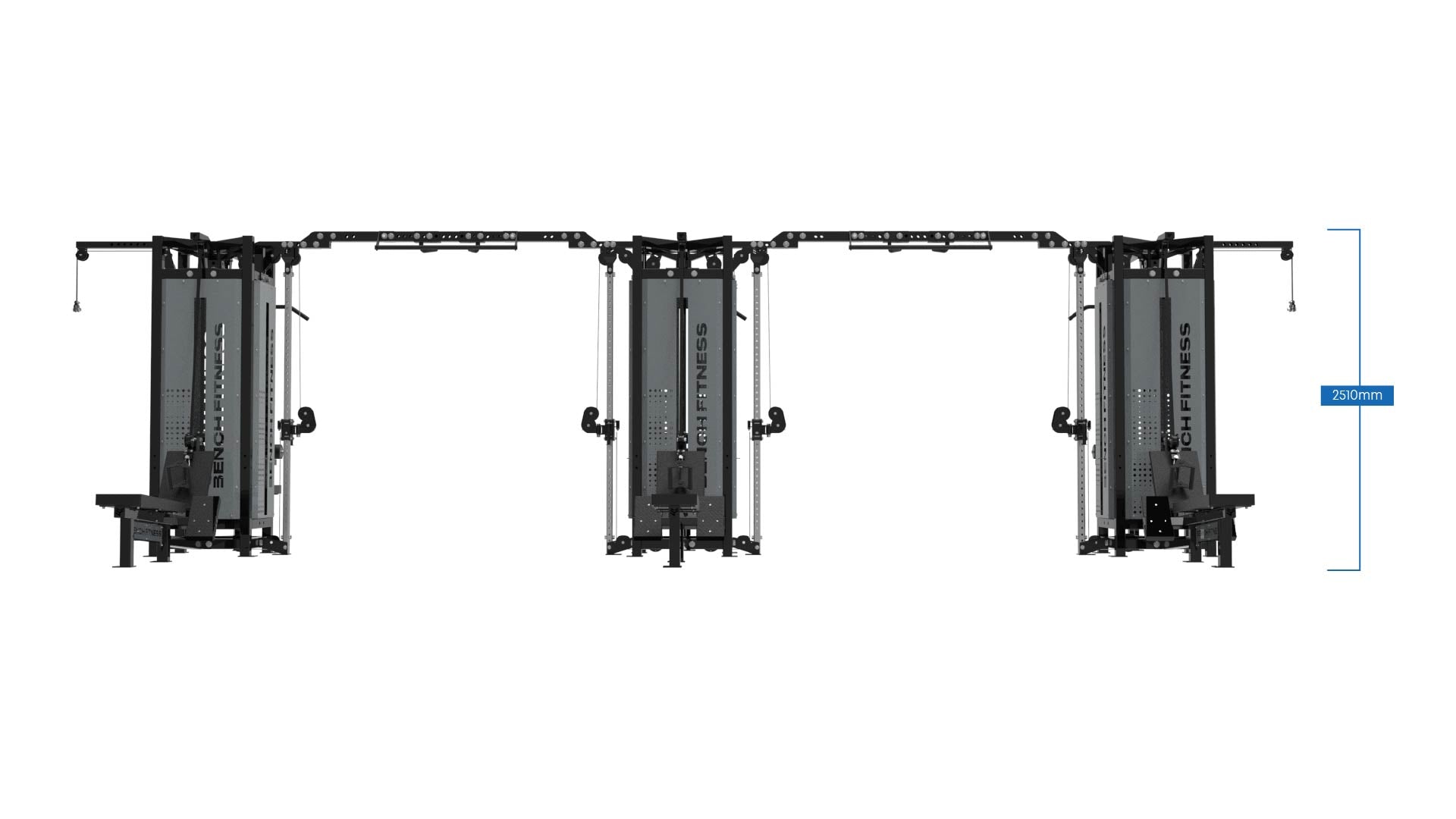

  • Footprint 9487mm x 3981mm, 2510mm high, 2384kg

Specifications

Material
75mm x 75mm steel tube main frame
Length
9487 mm (374 in)
Width
3981 mm (157 in)
Height
2510 mm (99 in)
Weight
2384 kg (5256 lb)
SKU
AC0007

Imperial figures are converted from the metric and rounded.

Customisation

  • Frame colour chosen per order
Colours and custom options

ASPIRE

Bench Built Lifetime frame warranty

The frame is covered for as long as you keep the equipment in service at the facility it was supplied to. Frame means the welded steel structure: base, uprights and main supports. Pulleys, guide rods, weight stacks, pads and cables carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.

Lifetime frame · 5 yr structural moving parts · 2 yr bearings, pulleys, guide rods, weight stacks · 1 yr coatings, upholstery, cables
