ASPIRE 5 Station Multi Gym

ASPIRE 5 Station Multi Gym – view 1 – Bench Fitness

Price on application

Made to order, enquire for lead time

Our sales team will come back to you within one business day.

  • Made to Order. Enquire for leadtime
  • Two adjustable pulleys plus three fixed stations
  • Pull-up bridge with two bar designs
  • 150kg stacks on Pulldown and Row

Australian designed

Equipping gyms in 20+ countries

Custom colours and branding available

Description

Five-station pin-loaded multi gym with pull-up bridge and dual adjustable pulleys, for commercial gyms.

The ASPIRE 5 Station Multi Gym joins a 4-way frame to a single-station frame with a bridge, giving five stations plus pull-up work in one system. Standard configuration is Lat Pulldown, Seated Row, Tricep Pushdown and two Adjustable Pulleys, and any combination of stations can be specified.

The Pulldown and Row run 150kg weight stacks; the Tricep and both Adjustable Pulleys run 115kg stacks. Pulldown, Row and Tricep are belt-driven. The bridge carries two pull-up bar designs with multiple grip options and is pre-configured to accept future attachments.

The rear weight stack on the single-station frame comes with a cover as standard; other panels are optional. The main frame is 75mm x 75mm and 100mm x 100mm steel tube. The system spans 4841mm by 3981mm, stands 2510mm high and weighs 1006kg. Built by Bench in Thailand.

Features

  • Standard stations: Lat Pulldown, Seated Row, Tricep Pushdown, 2x Adjustable Pulley
  • 150kg weight stacks on Pulldown and Row
  • 115kg weight stacks on Tricep and Adjustable Pulley
  • Belt drive on Pulldown, Row and Tricep
  • Two pull-up bar designs on the bridge, pre-configured for future attachments
  • 75mm x 75mm and 100mm x 100mm steel tube main frame

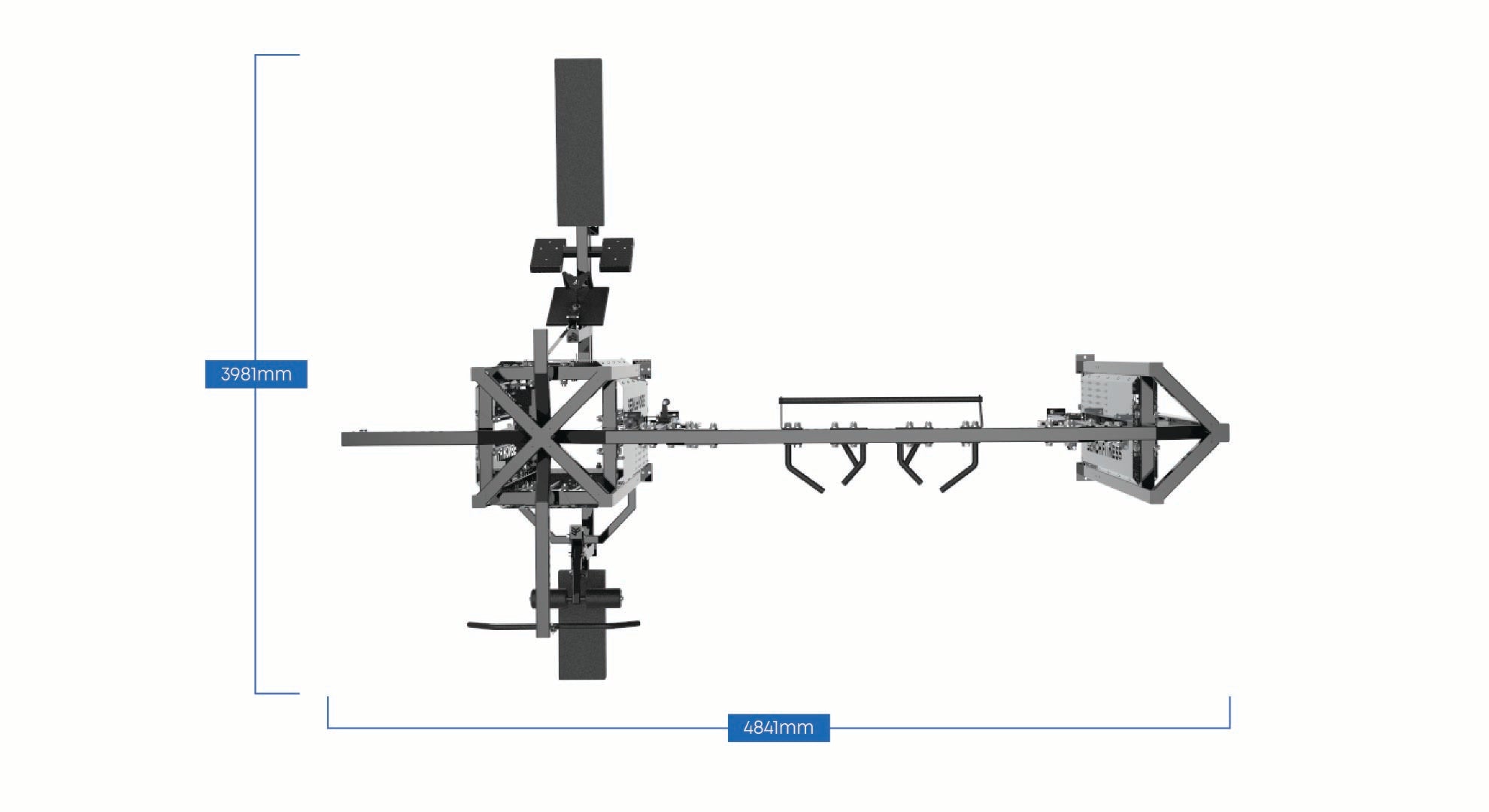

  • Footprint 4841mm x 3981mm, 2510mm high, 1006kg

Specifications

Material
75x75 / 100x100mm steel tube main frame
Length
4841 mm (191 in)
Width
3981 mm (157 in)

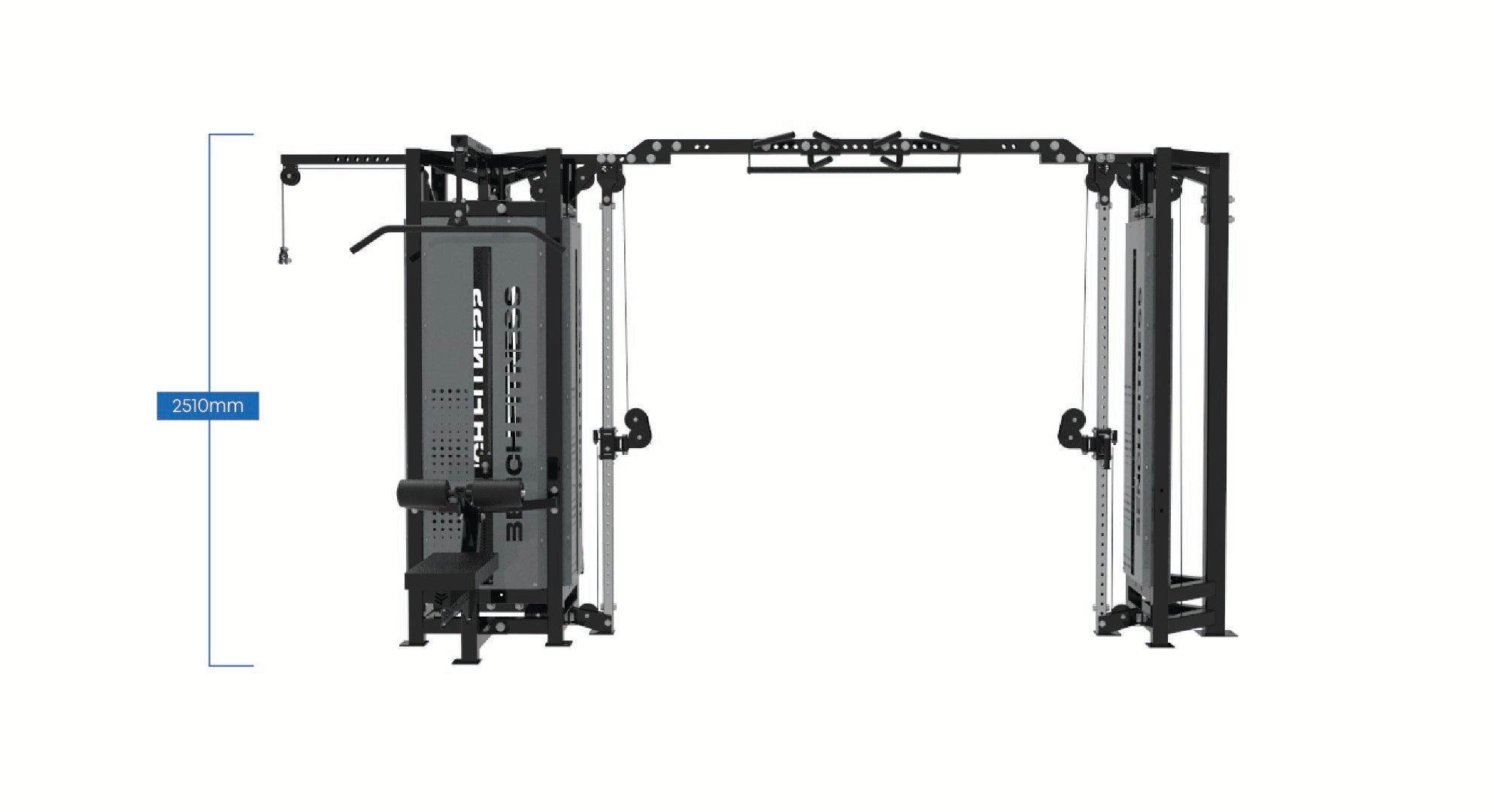

Height
2510 mm (99 in)
Weight
1006 kg (2218 lb)
SKU
AC0005

Imperial figures are converted from the metric and rounded.

Customisation

  • Frame colour chosen per order
Colours and custom options

ASPIRE

Bench Built Lifetime frame warranty

The frame is covered for as long as you keep the equipment in service at the facility it was supplied to. Frame means the welded steel structure: base, uprights and main supports. Pulleys, guide rods, weight stacks, pads and cables carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.

Lifetime frame · 5 yr structural moving parts · 2 yr bearings, pulleys, guide rods, weight stacks · 1 yr coatings, upholstery, cables

Download warranty Read the full warranty

Downloads

Australian designed. Built in our Rayong factories.

Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.
