ASPIRE

ASPIRE Cable Crossover

Price on application

Made to order, enquire for lead time


Our sales team will come back to you within one business day.

  • Made to Order. Enquire for leadtime
  • Two 115kg stacks on a freestanding frame
  • Two pull-up bar systems built into the bridge
  • Rear stack covers included as standard

Australian designed

Equipping gyms in 20+ countries

Custom colours and branding available

Description

Standalone dual-stack cable crossover with integrated pull-up bridge for commercial gyms.

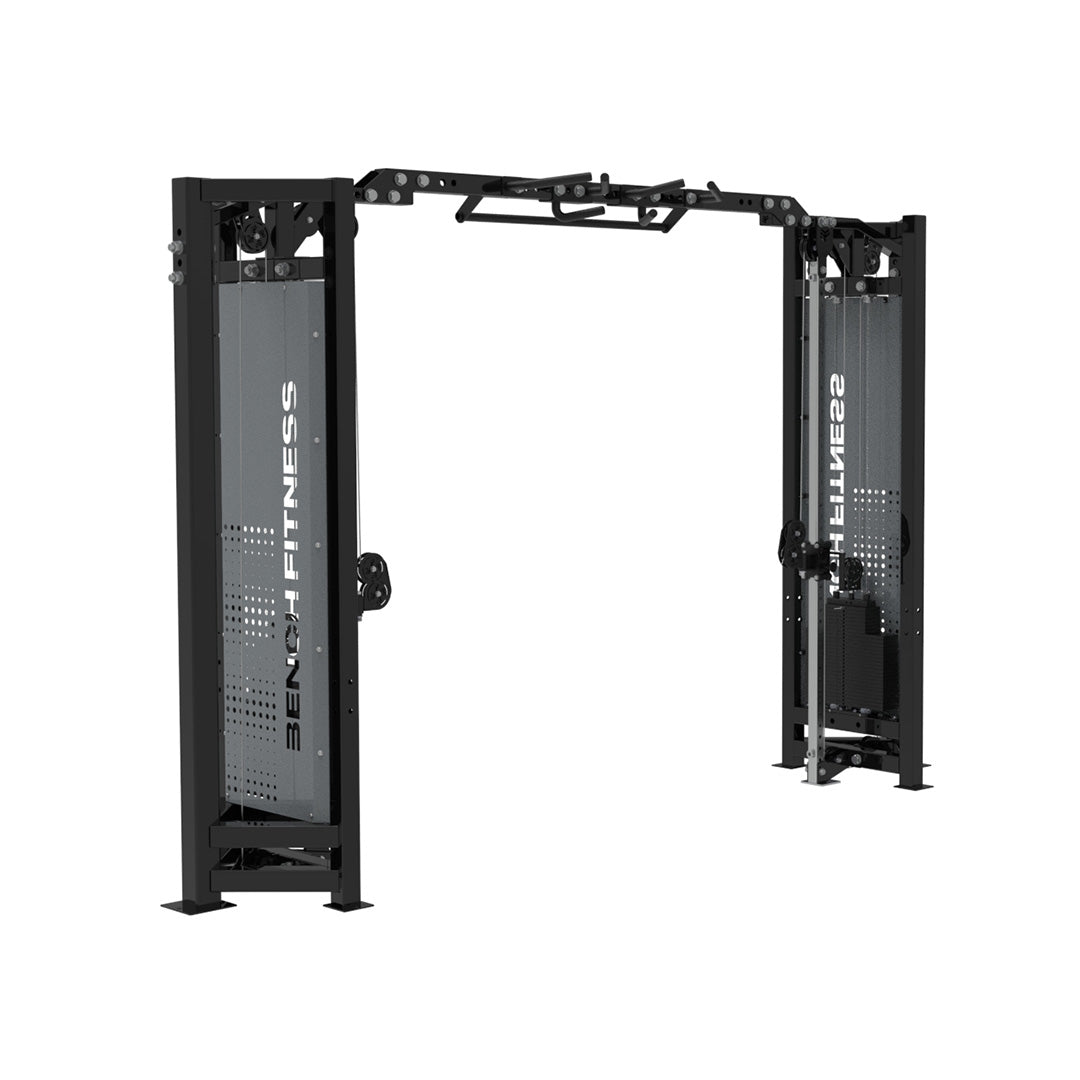

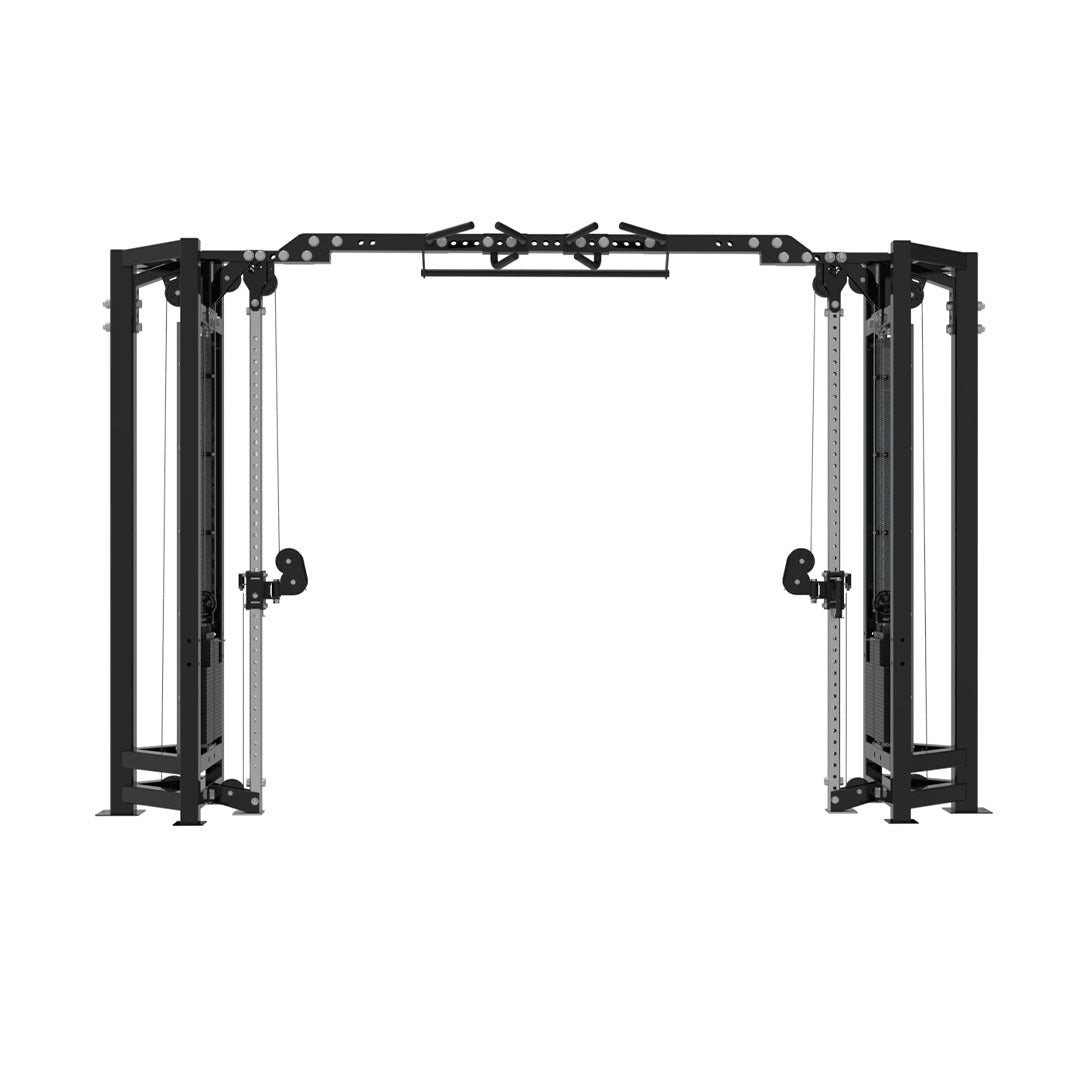

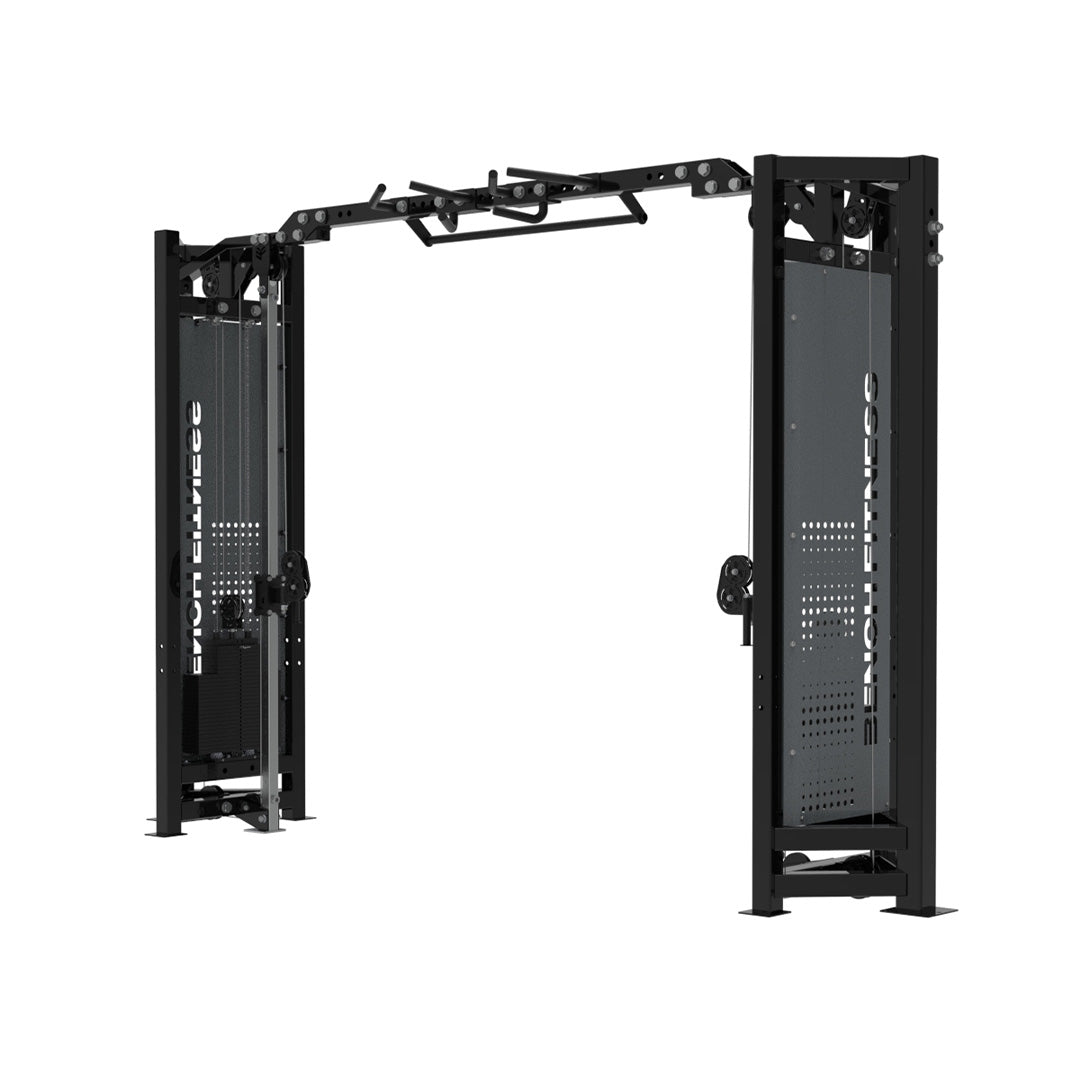

The ASPIRE Cable Crossover pairs two 115kg weight stacks with adjustable pulleys on a freestanding frame, so it can sit in open floor space rather than against a wall. Members get full-range cable work from a single station without waiting for one to free up.

The bridge joining the two towers carries two pull-up bar systems with different grip options, and is pre-configured to accept future attachments. Two rear weight stack covers are included as standard; two front covers are available to enclose the stacks fully.

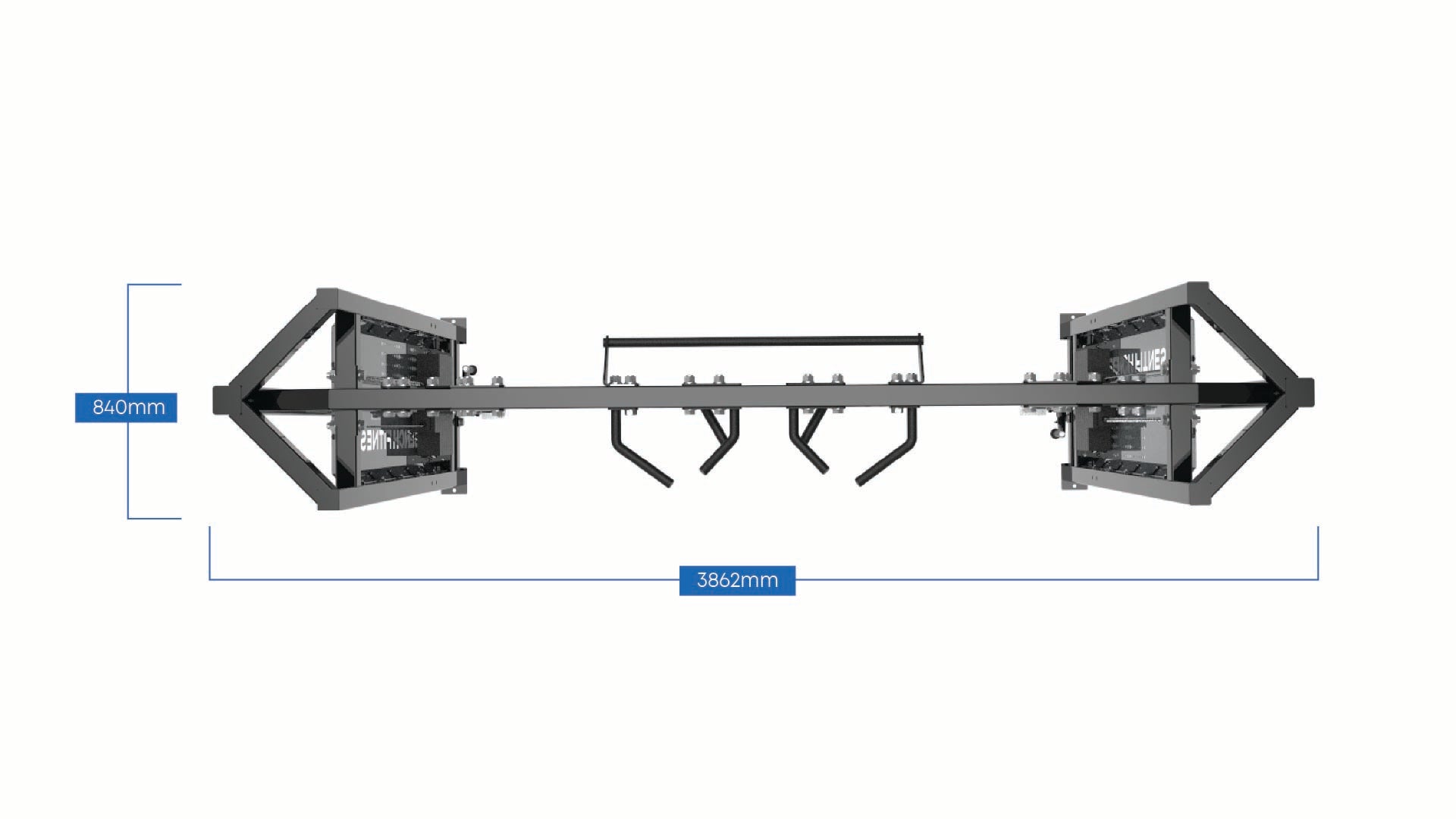

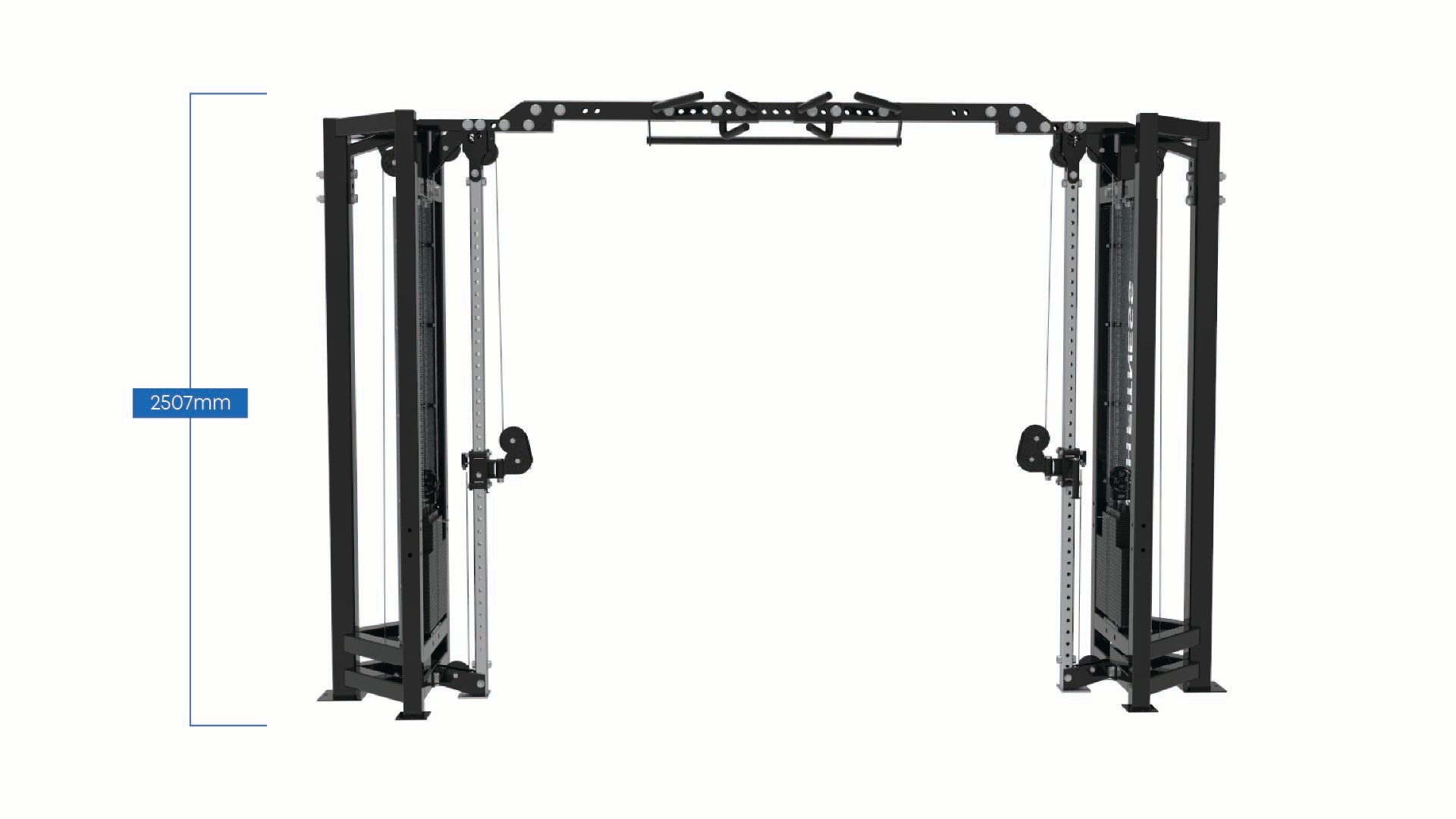

The main frame is built from 75mm x 75mm and 100mm x 100mm steel tube. The unit spans 3862mm long by 840mm wide, stands 2510mm high and weighs 411kg. Built by Bench in Thailand.

Features

  • Dual 115kg weight stacks
  • Two integrated pull-up bar systems with different grips
  • Bridge pre-configured for future attachments
  • 2 rear weight stack covers included
  • Optional 2 front covers for full enclosure
  • 75mm x 75mm and 100mm x 100mm steel tube main frame
  • Footprint 3862mm x 840mm, 2510mm high, 411kg

Specifications

Material
75x75mm / 100x100mm steel tube main frame
Length
3862 mm (152 in)
Width
840 mm (33 in)
Height
2510 mm (99 in)
Weight
411 kg (906 lb)
SKU
AC0002

Imperial figures are converted from the metric and rounded.

Customisation

  • Frame colour chosen per order
Colours and custom options

ASPIRE

Bench Built Lifetime frame warranty

The frame is covered for as long as you keep the equipment in service at the facility it was supplied to. Frame means the welded steel structure: base, uprights and main supports. Pulleys, guide rods, weight stacks, pads and cables carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.

Lifetime frame · 5 yr structural moving parts · 2 yr bearings, pulleys, guide rods, weight stacks · 1 yr coatings, upholstery, cables

Australian designed. Built in our Rayong factories.

Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.

See how it is made
