EXCEED V2 Hack Squat (Classic Frame)
98,769 ฿ THB
VAT inc.
Price on application
Made to order, enquire for lead time
- Made to Order. Enquire for leadtime
- Run it at 30 or 45 degrees
- Quad-biased or quad-glute loading from foot position
- Fifteen range limiter positions and three safety stops
Australian designed
Equipping gyms in 20+ countries
Custom colours and branding available
Description

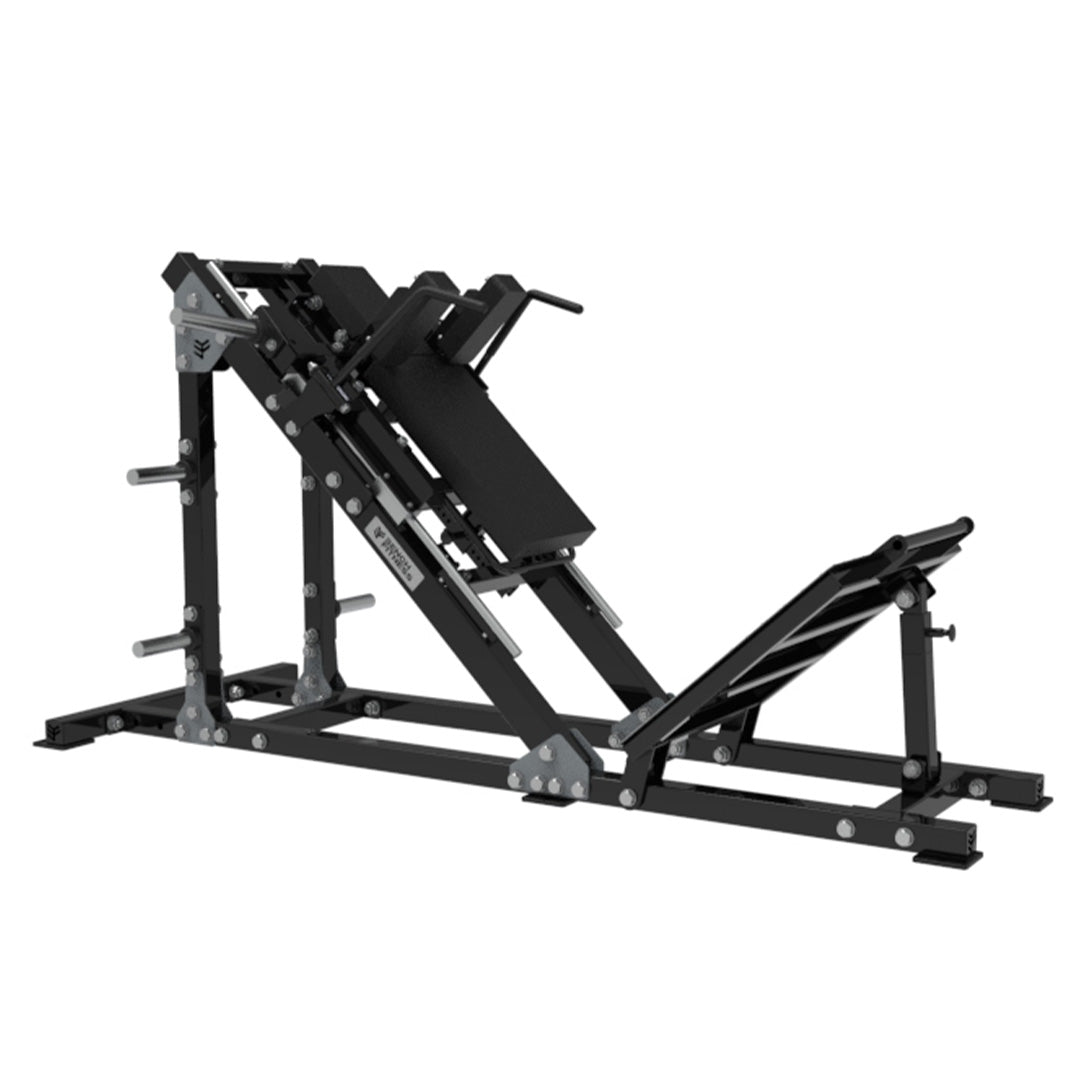

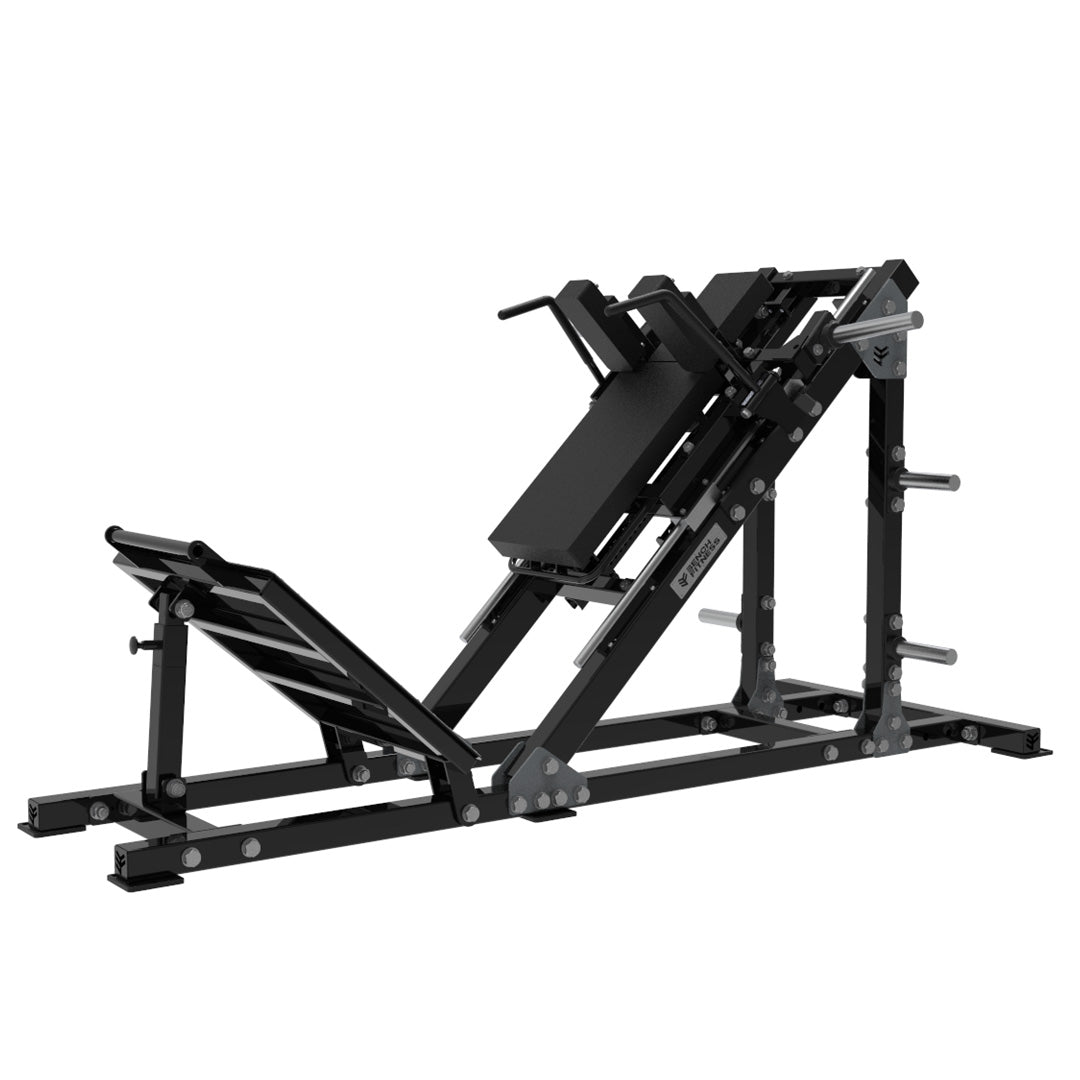

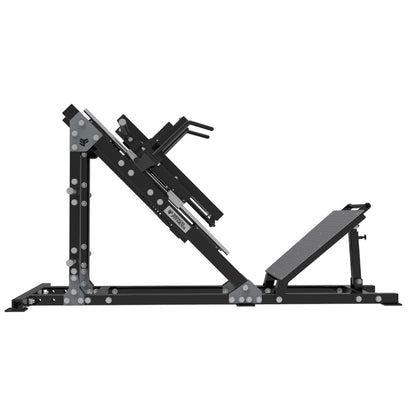

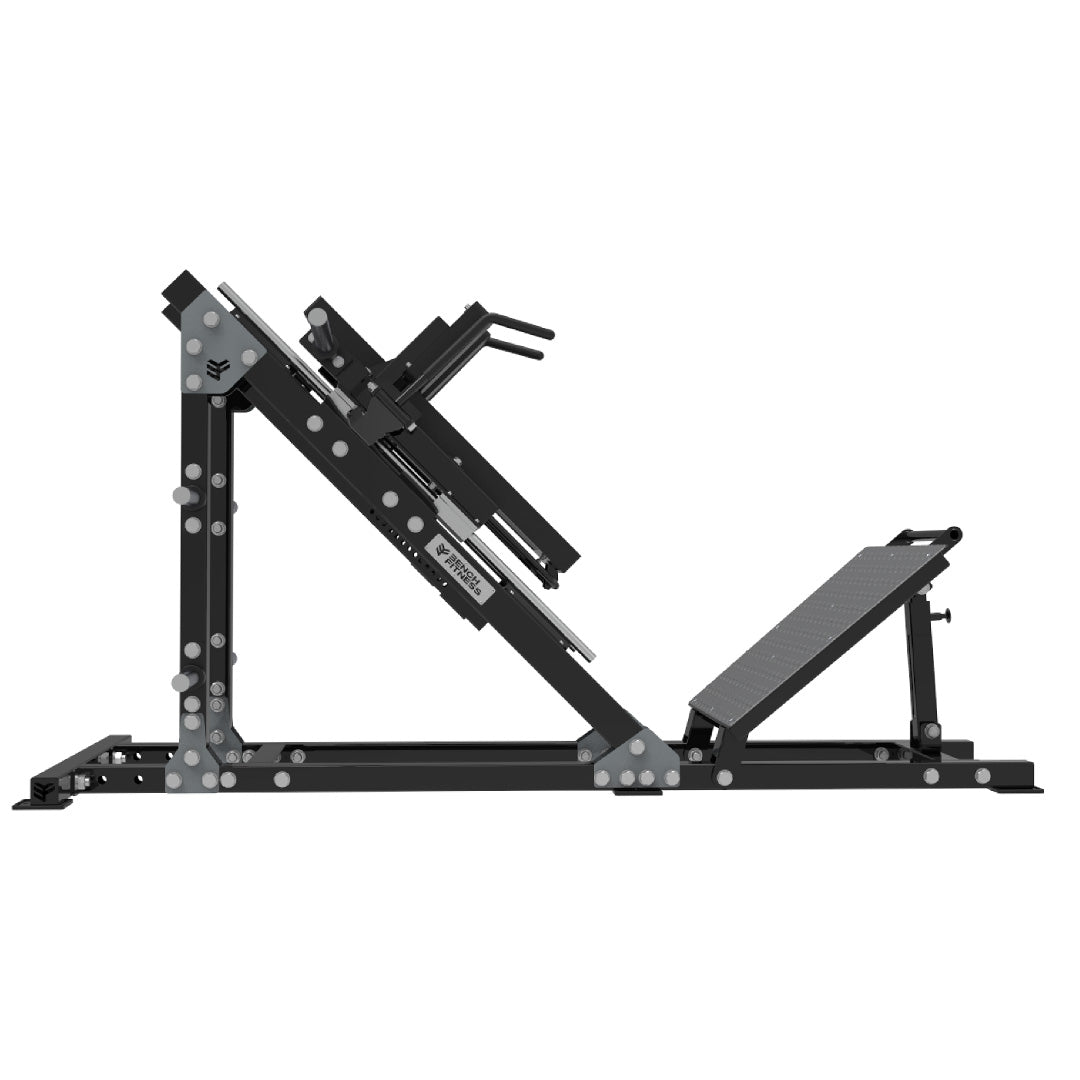

Plate-loaded hack squat with interchangeable 30 and 45 degree uprights.
The Hack Squat loads a squat with the back against an angled pad and the feet out in front on a large aluminium checker plate footplate. Foot position sets the emphasis: low and close biases the quads, higher brings in more glute. The footplate angle adjusts across four positions.
It ships with interchangeable uprights for a 30 or 45 degree sled angle. Starting load is 25kg at 30 degrees and 31kg at 45 degrees. Range limiters set the depth across fifteen positions, and a three-position safety stop system catches the sled. Grab handles at the seat base help the lifter in and out.
The sled runs on upgraded bearings and movement assemblies, with stainless steel movement and storage pins. The frame is built from 75 x 75 and 75 x 100 tube by Bench in Thailand. Machine weight is 354kg.
Features
- Interchangeable 30 and 45 degree uprights
- Large aluminium checker plate footplate
- Four-position adjustable foot platform angle
- Fifteen-position adjustable range limiters
- Three-position safety stop system
- Upgraded bearings and movement assemblies
- 25kg (30 degree) or 31kg (45 degree) starting load, 354kg machine
Specifications
- Material
- 75 x 75 / 75 x 100 Tube frame
- Length
- 2846 mm (112 in)
- Width
- 1515 mm (60 in)
- Height
- 1478 mm (58 in)
- Weight
- 354 kg (780 lb)
- SKU
- BA0016
Imperial figures are converted from the metric and rounded.
Customisation
- Frame colour chosen per order
- Upholstery colour chosen separately from the frame
EXCEED V2
Bench Built Lifetime frame warranty
The frame is covered for as long as you keep the equipment in service at the facility it was supplied to. Frame means the welded steel structure: base, uprights and main supports. Movement arms, safeties, bearings, pads and cables carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.
Lifetime frame · 5 yr structural moving parts · 2 yr bearings, bushes, pulleys · 1 yr coatings, upholstery, cables
Australian designed. Built in our Rayong factories.
Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.
