EXCEED V2 Lat Pull Down (Classic Frame)
67,348 ฿ THB
VAT inc.
Price on application
Made to order, enquire for lead time
- Made to Order. Enquire for leadtime
- 1kg starting load, resistance is what you load
- Rotating D-handles turn through the pull
- Lever arm, no cable to replace
Australian designed
Equipping gyms in 20+ countries
Custom colours and branding available
Description
Plate-loaded lat pull down for lat width and upper-back work.
The Lat Pull Down loads a vertical pull on a fixed movement arm rather than a cable, so the path is the same every rep and there is no cable or pulley to wear out. The lifter pulls the handles down and back towards the chest with the thighs under the pad.
Handles are rotating D-handles with softened knurling, so the wrists can turn through the pull from a pronated start to a more neutral finish. The handle assemblies are zinc coated and powder coated. Seat height is gas-assisted and the feet rest on an aluminium checker plate platform.
The empty starting load is 1kg, so resistance is the plates the user puts on it. Movement and storage pins are stainless steel. The 75mm x 75mm steel tube frame is built by Bench in Thailand. Machine weight is 168kg.
Features
- Rotating D-handles with softened knurling
- Zinc-coated and powder-coated handle assemblies
- Gas-assisted seat height adjustment
- Aluminium checker plate foot platform
- Stainless steel movement and storage pins
- 1kg starting weight load

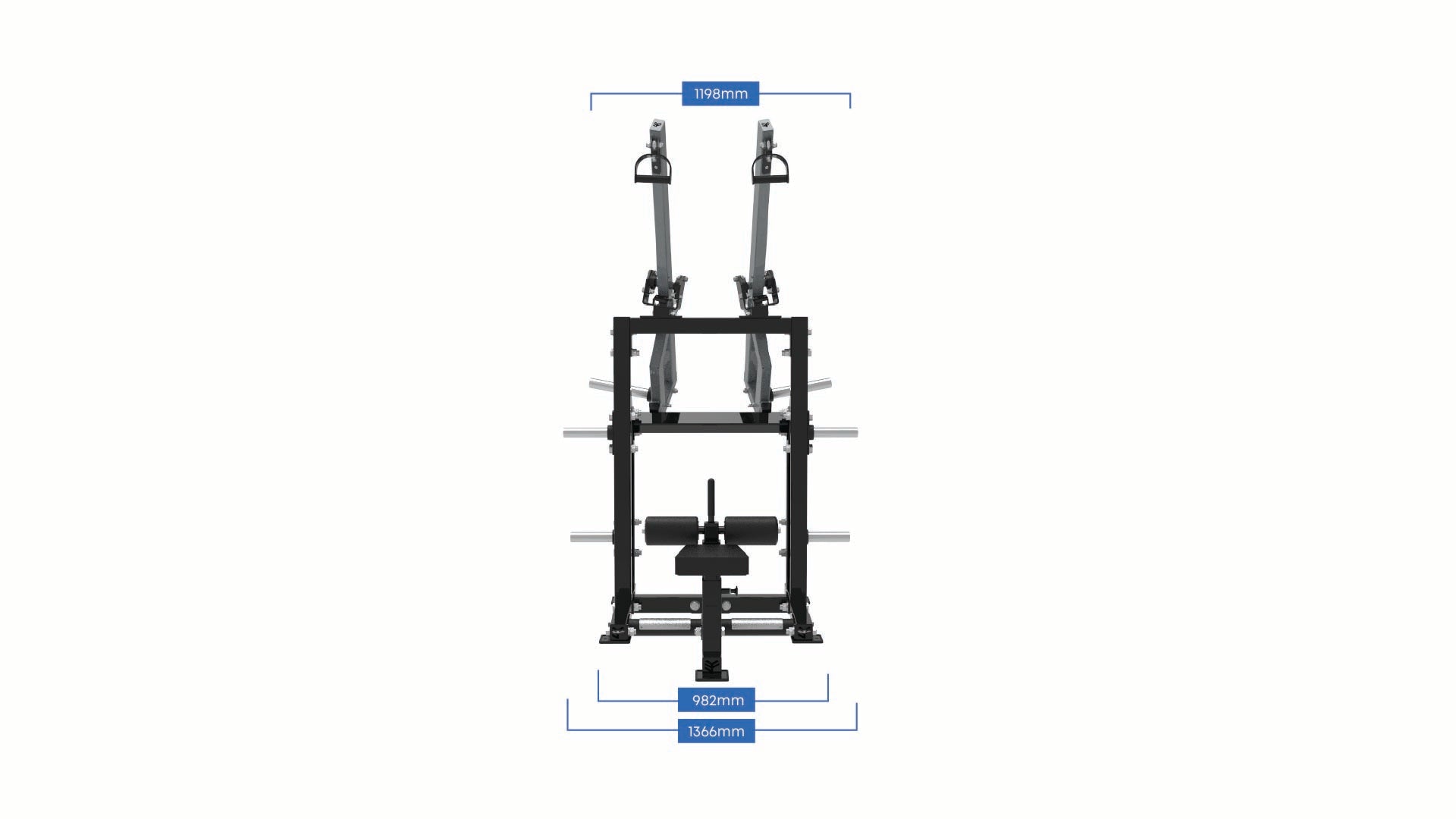

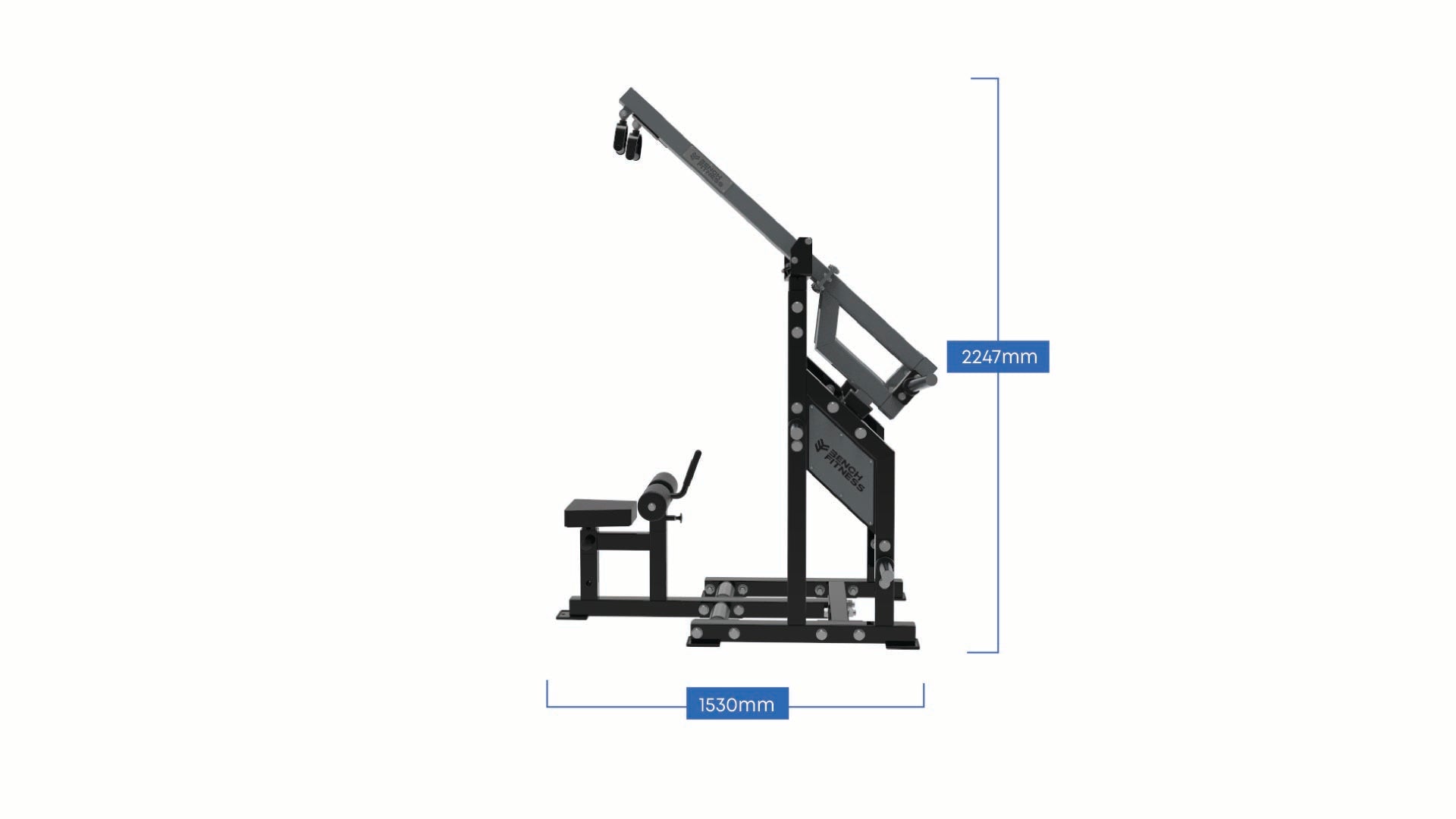

- 75mm x 75mm steel tube main frame, 168kg, 2247mm high
Specifications
- Material
- 75mm x 75mm steel tube main frame
- Length
- 1530 mm (60 in)
- Width
- 1366 mm (54 in)
- Height
- 2247 mm (88 in)
- Weight
- 168 kg (370 lb)
- SKU
- BC0012
Imperial figures are converted from the metric and rounded.
Customisation
- Frame colour chosen per order
- Upholstery colour chosen separately from the frame
- Your logo on a branding plate
EXCEED V2
Bench Built Lifetime frame warranty
The frame is covered for as long as you keep the equipment in service at the facility it was supplied to. Frame means the welded steel structure: base, uprights and main supports. Movement arms, safeties, bearings, pads and cables carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.
Lifetime frame · 5 yr structural moving parts · 2 yr bearings, bushes, pulleys · 1 yr coatings, upholstery, cables
Downloads
Australian designed. Built in our Rayong factories.
Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.
See how it is made
