EXCEED V2 Pendulum Squat (Classic Frame)
87,437 ฿ THB
VAT inc.
Price on application
Made to order, enquire for lead time
- Made to Order. Enquire for leadtime
- Tension stays on through the bottom of the squat
- Range limiter for controlled depth progression
- Four platform angles shift quad or glute emphasis
Australian designed
Equipping gyms in 20+ countries
Custom colours and branding available
Description

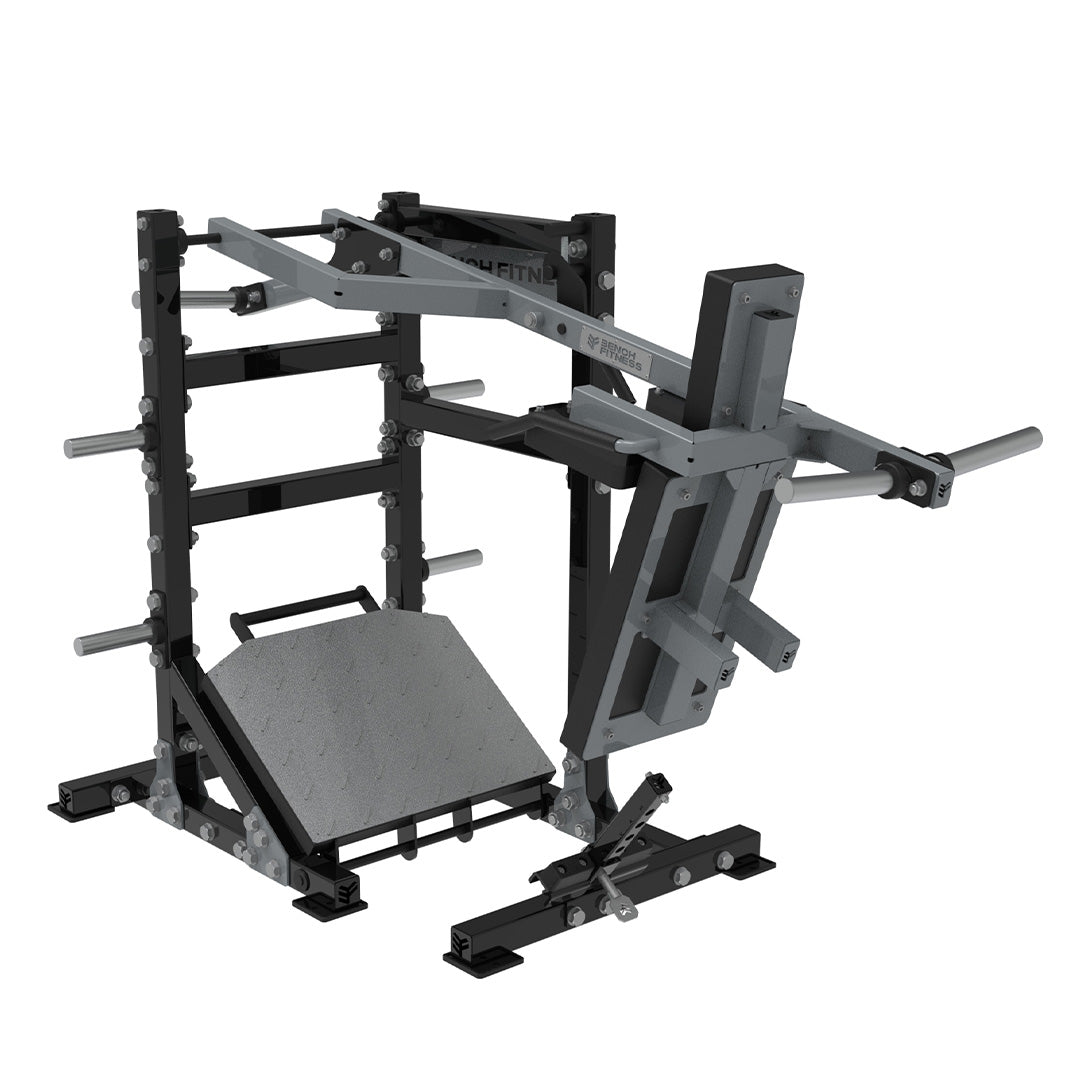

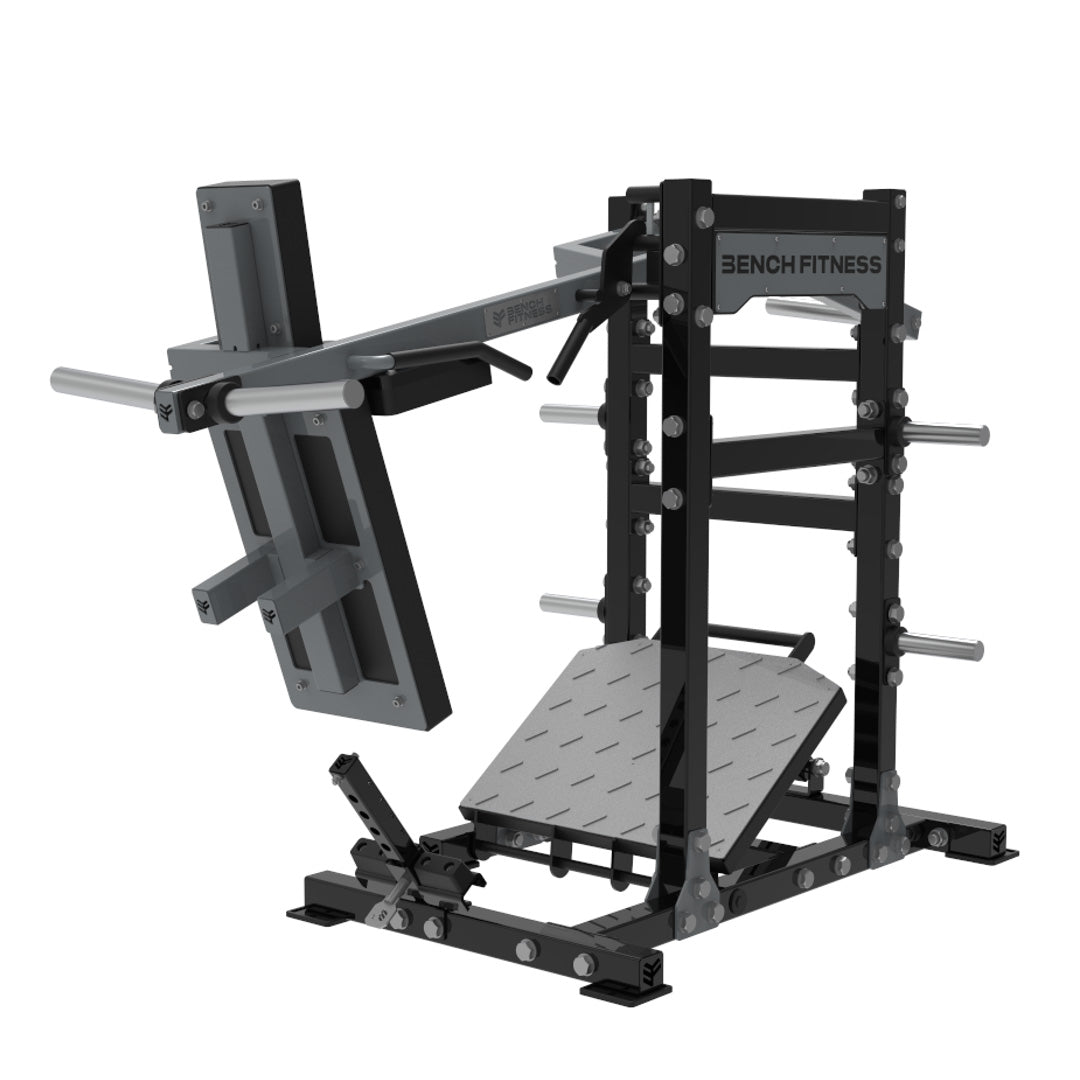

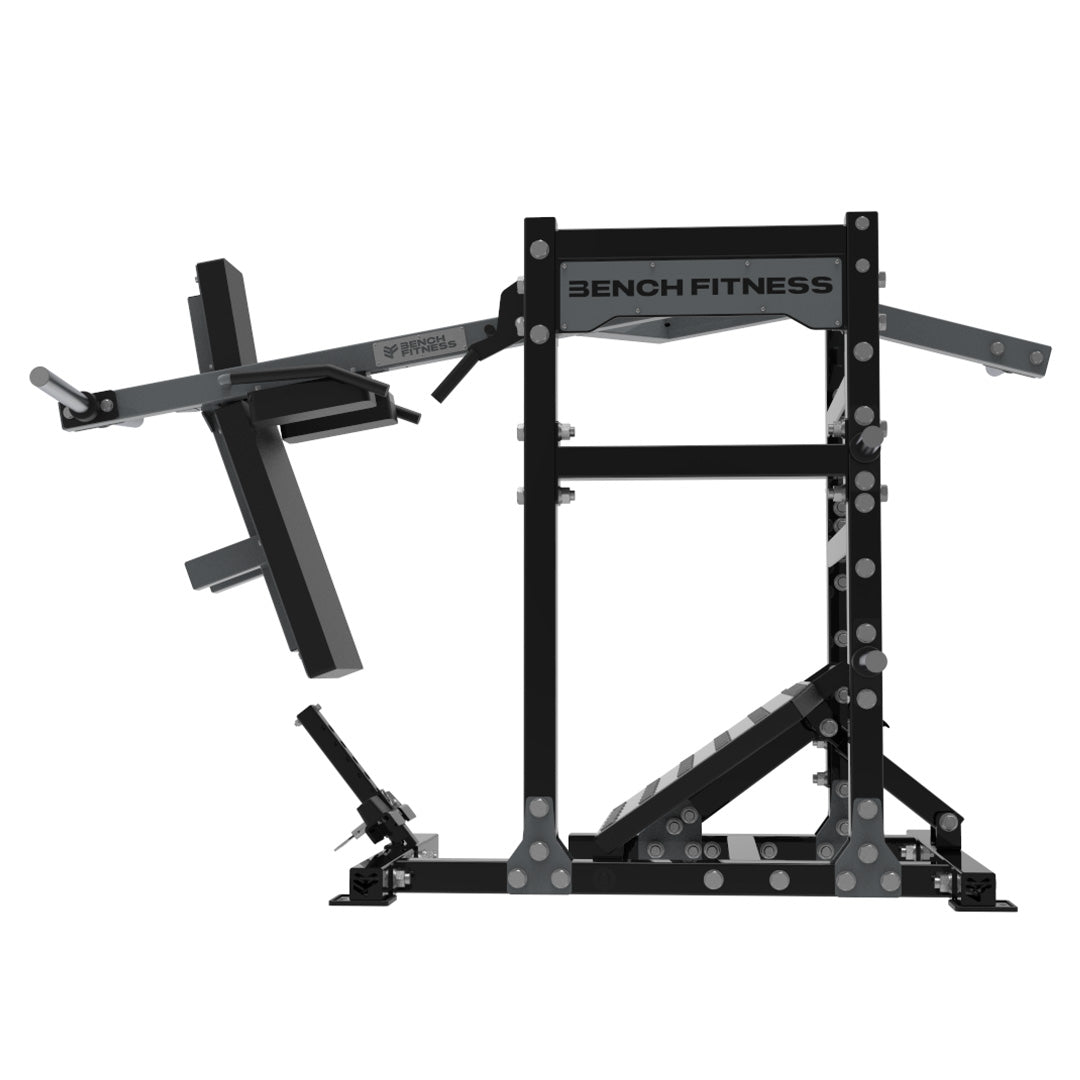

Plate-loaded pendulum squat for deep squatting with constant tension.
The Pendulum Squat swings the load on an arc rather than a straight rail. The arc keeps resistance on the legs through the bottom of the squat where a fixed rail lightens off, and lets the knees travel forward so the lifter can squat deep with an upright torso.
A range limiter sets the depth, useful for progressing a member from partials to full depth or working around a knee issue. The foot platform angle adjusts across four positions to shift emphasis between quads and glutes, and the platform itself is a large aluminium checker plate with room for a wide stance.
It runs on upgraded bearings and movement assemblies. Starting load is 63kg. Movement arm and storage weight pins are stainless steel. The 75mm x 75mm steel tube frame is built by Bench in Thailand. Machine weight is 288kg.
Features
- Pendulum arc movement path
- Adjustable range limiter for depth
- Four-position adjustable foot platform angle
- Large aluminium checker plate foot platform
- Upgraded bearings and movement assemblies
- Stainless steel movement arm and storage weight pins
- 63kg starting weight load, 288kg machine

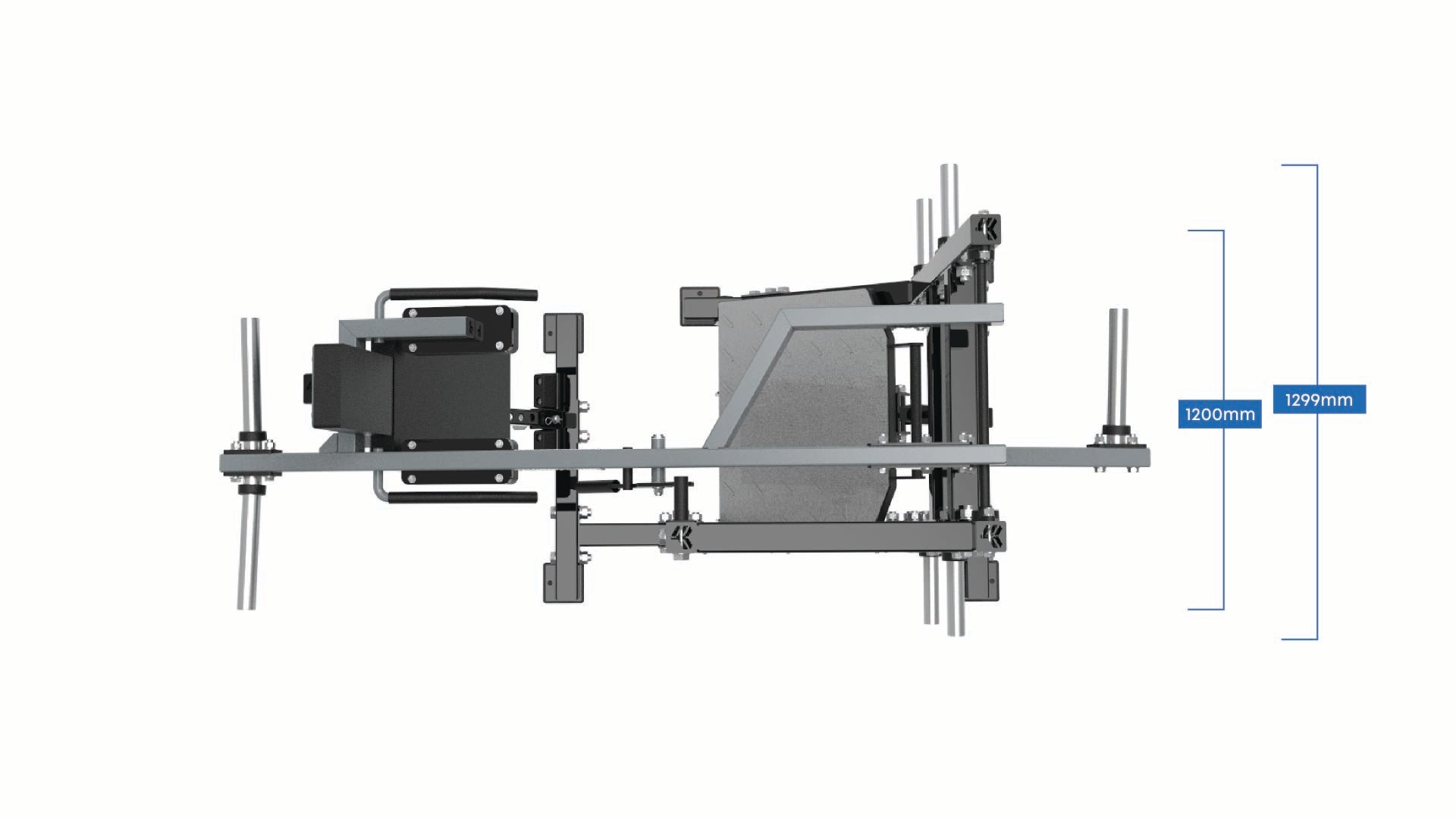

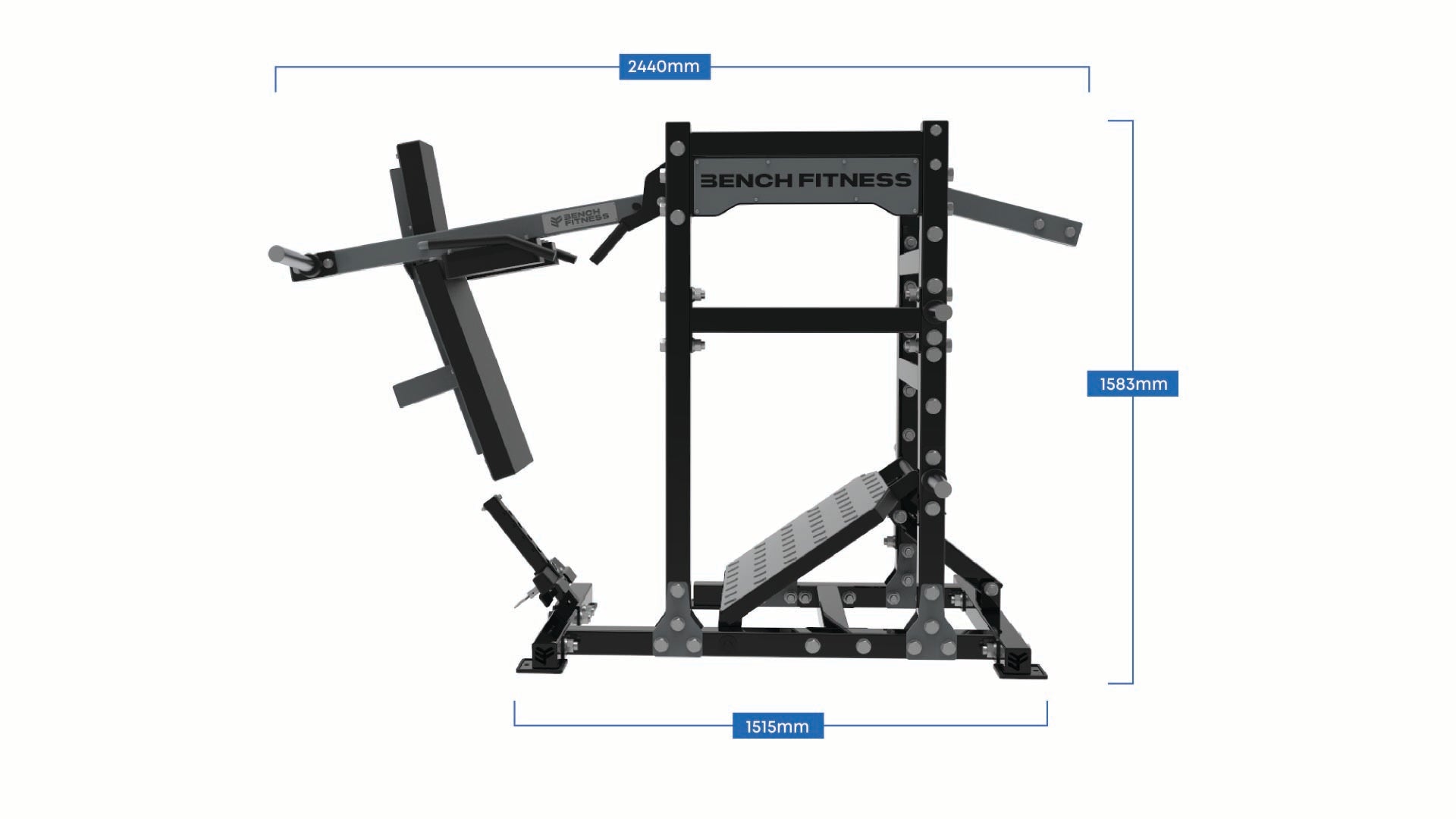

Specifications
- Material
- 75mm x 75mm steel tube main frame
- Length
- 2440 mm (96 in)
- Width
- 129 mm (5.1 in)
- Height
- 1583 mm (62 in)
- Weight
- 288 kg (635 lb)
- SKU
- BA0018
Imperial figures are converted from the metric and rounded.
Customisation
- Frame colour chosen per order
- Upholstery colour chosen separately from the frame
- Your logo on a branding plate
EXCEED V2
Bench Built Lifetime frame warranty
The frame is covered for as long as you keep the equipment in service at the facility it was supplied to. Frame means the welded steel structure: base, uprights and main supports. Movement arms, safeties, bearings, pads and cables carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.
Lifetime frame · 5 yr structural moving parts · 2 yr bearings, bushes, pulleys · 1 yr coatings, upholstery, cables
Downloads
Australian designed. Built in our Rayong factories.
Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.
See how it is made
