REVOLVE

REVOLVE PU DB 1.2m 1 Tier Extension (2.5 Pairs)

REVOLVE PU DB 1.2m 1 Tier Extension (2.5 Pairs) – view 1 – Bench Fitness

11,649 ฿ THB

VAT inc.

Made to order, enquire for lead time

Our sales team will come back to you within one business day.

  • Made to Order. Enquire for leadtime
  • Adds capacity without a second complete rack
  • Same 70kg per hand rating as the main rack
  • Shorter and lighter than a standalone unit

Australian designed

Equipping gyms in 20+ countries

Custom colours and branding available

Description

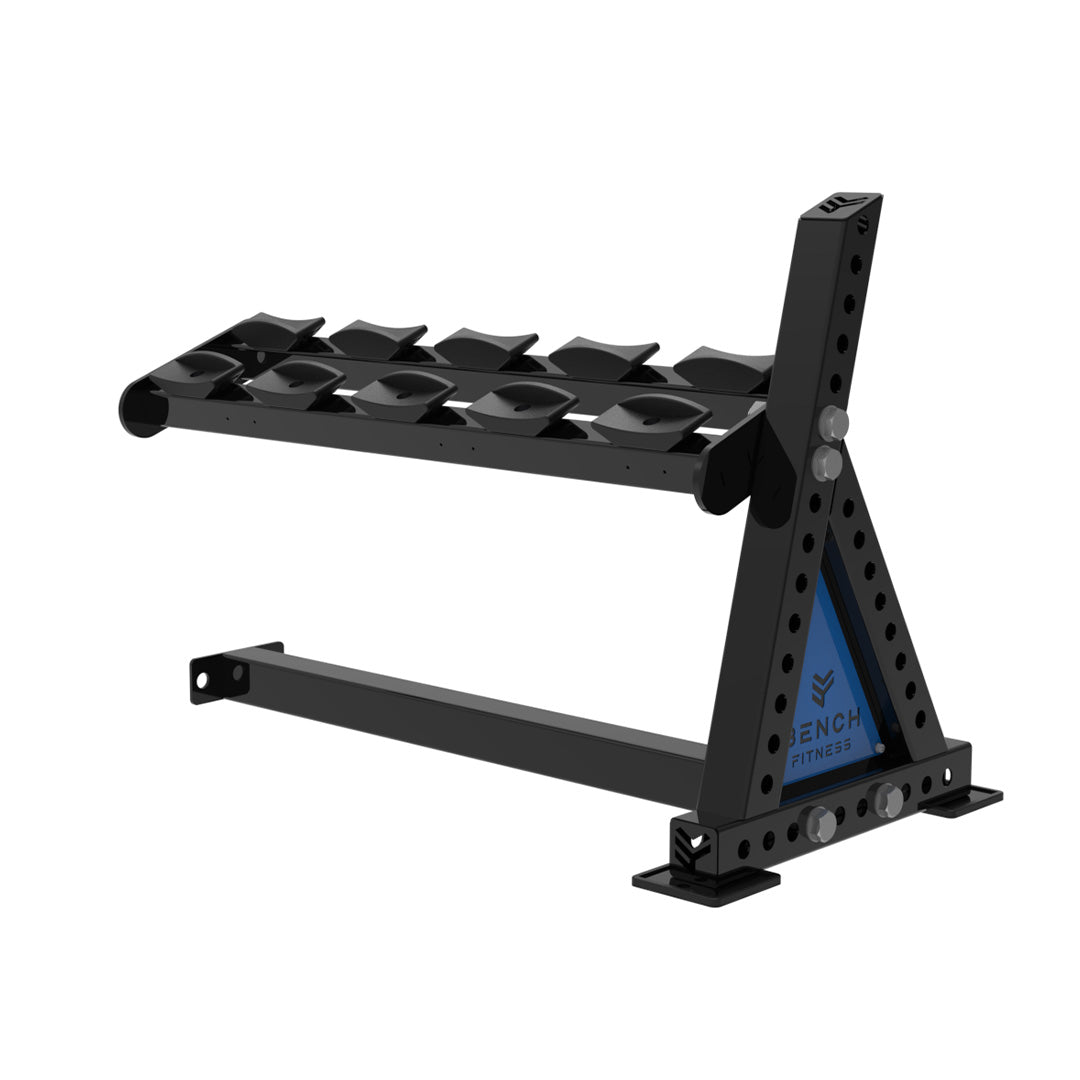

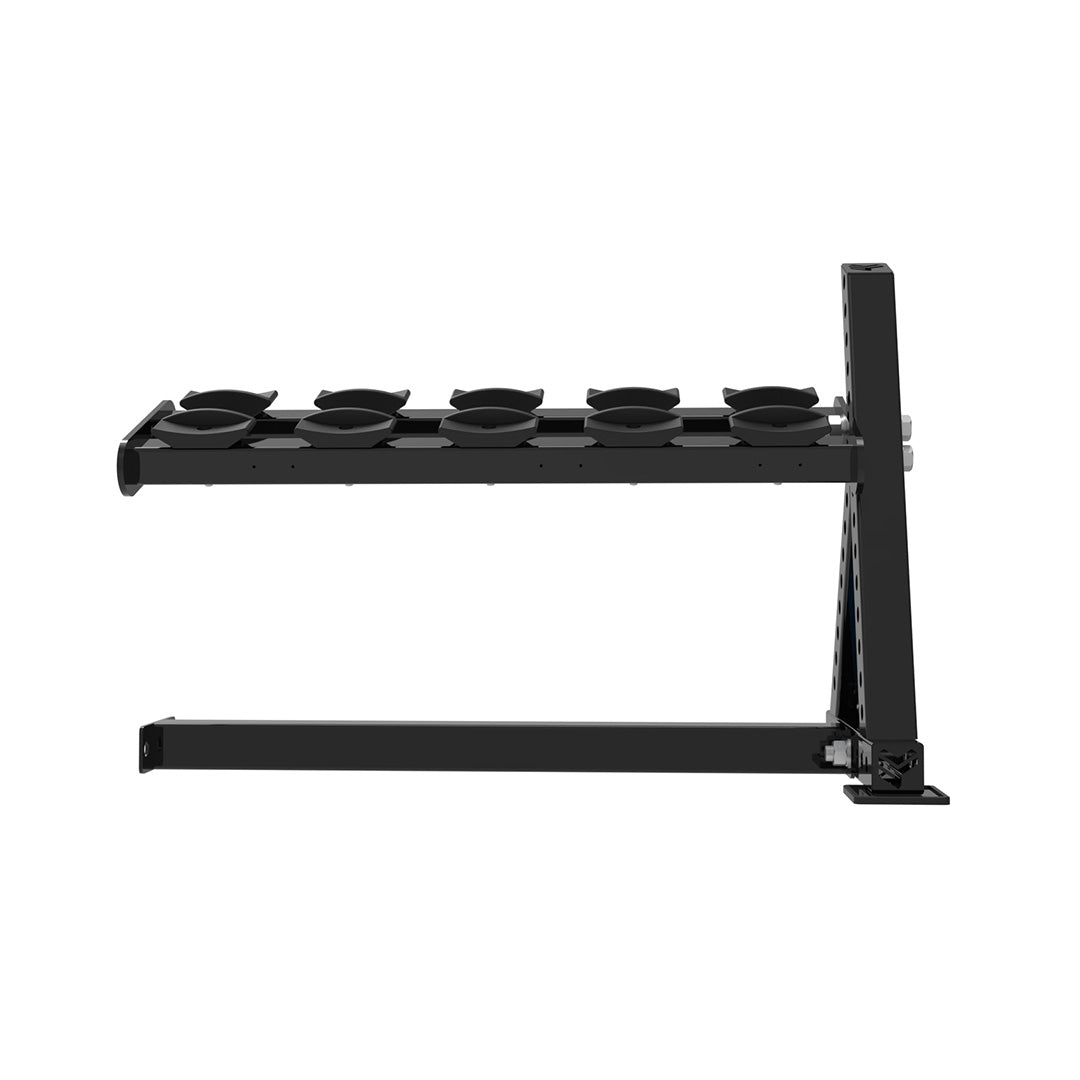

Bolt-on single-tier extension adding 2.5 pairs to a 1.2m REVOLVE PU DB rack.

The 1.2m 1 Tier Extension bolts onto the side of an existing 1.2m REVOLVE PU DB rack and adds 2.5 pairs of round dumbbells up to 70kg each. It shares the end frame of the host rack, so it is shorter than a standalone unit at 1195mm and the run grows without a second complete rack.

The side frame is 75mm x 75mm mild steel tube with a powder coat finish. Its own branding plate and pre-drilled indicator holes match the host rack. Built by Bench in Thailand.

Features

  • Adds 2.5 pairs of round dumbbells up to 70kg each
  • 1 tier, 1.2m shelf
  • Bolts onto an existing 1.2m REVOLVE PU DB rack
  • 75mm x 75mm mild steel tube side frame
  • Powder coat finish
  • Large branding plate and pre-drilled weight indicator holes
  • 1195mm long, 646mm wide, 833mm high, 47kg

Specifications

Material
75mm x 75mm Mild Steel Tube
Length
1195 mm (47 in)
Width
646 mm (25 in)
Height
833 mm (33 in)
Weight
47 kg (104 lb)
SKU
EL0035

Imperial figures are converted from the metric and rounded.

Customisation

  • Frame colour chosen per order
  • Your logo on a branding plate
Colours and custom options

REVOLVE

Bench Built 10 Year frame warranty

The welded steel frame — uprights, crossmembers and base — is covered for 10 years of full commercial use. Safeties, spotter arms, J-cups, pads and hardware carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.

10 yr frame (uprights and crossmembers) · 5 yr safeties, spotter arms, J-cups · 1 yr coatings, upholstery, hardware

Download warranty Read the full warranty

Downloads

Australian designed. Built in our Rayong factories.

Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.

See how it is made
