REVOLVE PU DB 1.2m 4 Tier Extension (10 Pairs)
30,057 ฿ THB
VAT inc.
Price on application
Made to order, enquire for lead time
- Made to Order. Enquire for leadtime
- Adds 10 pairs without a second complete rack
- Same 70kg per hand rating as the main rack
- Largest 1.2m extension in the family
Australian designed
Equipping gyms in 20+ countries
Custom colours and branding available
Description

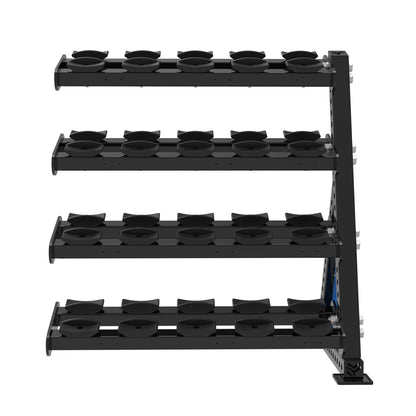

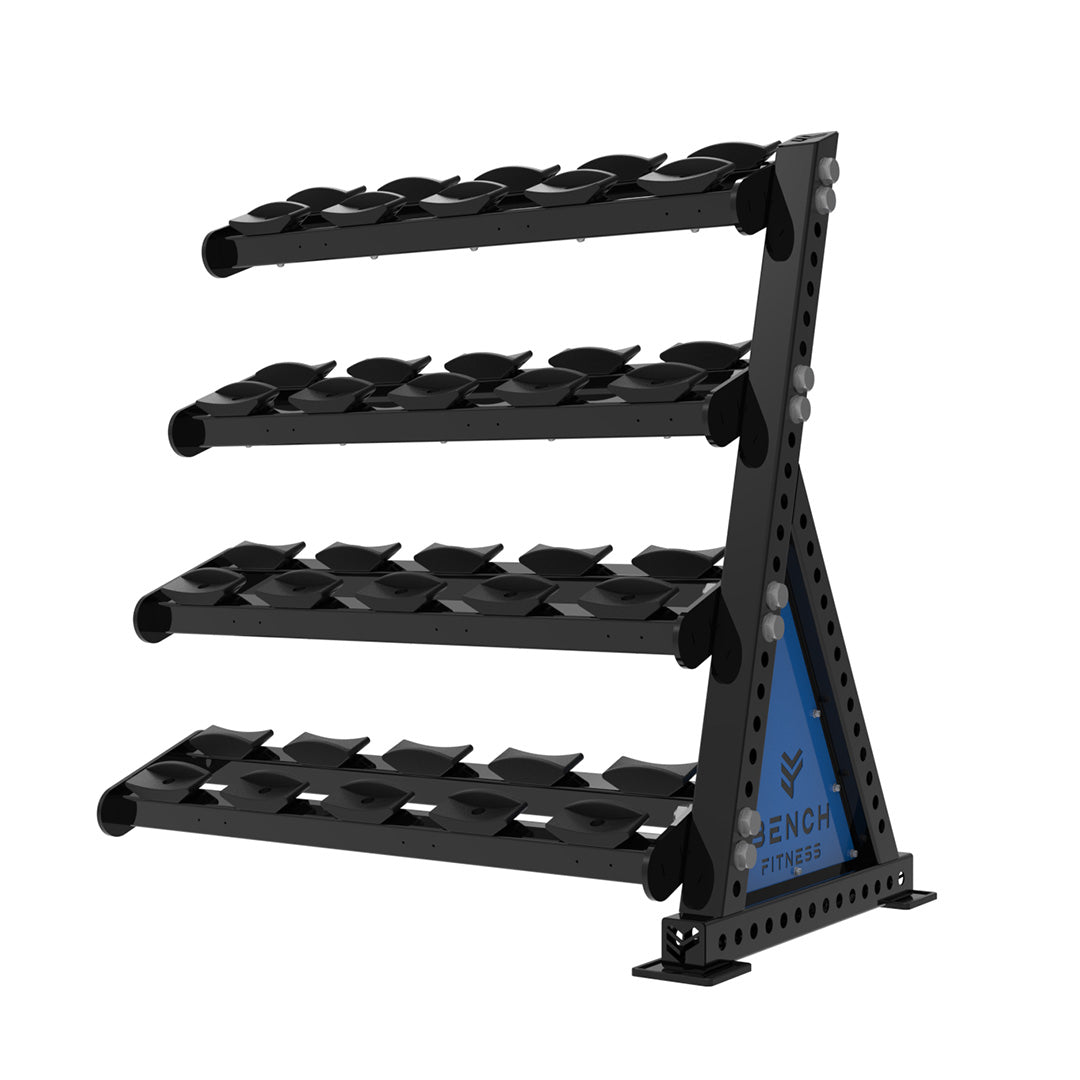

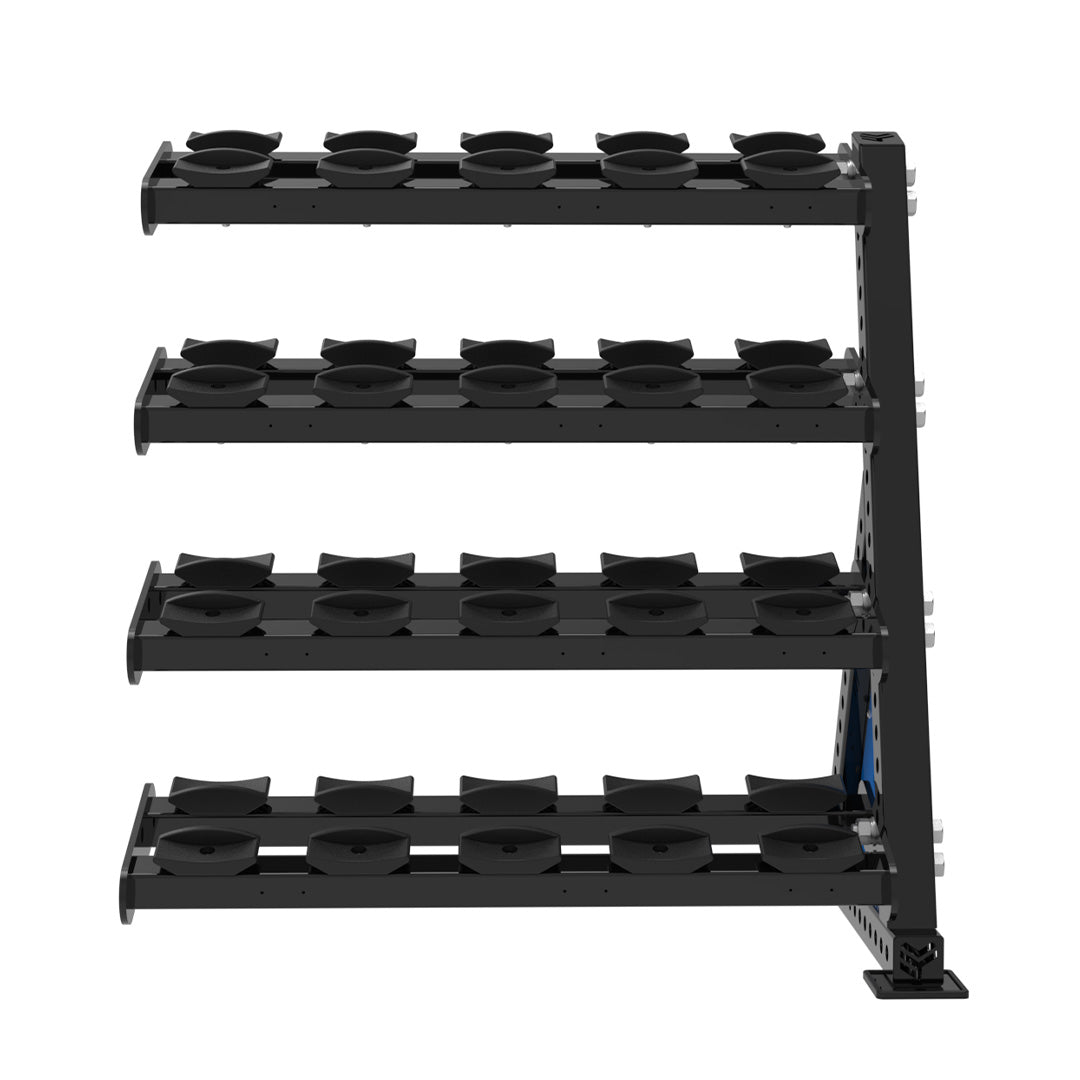

Bolt-on four-tier extension adding 10 pairs to a 1.2m REVOLVE PU DB rack.
The 1.2m 4 Tier Extension bolts onto the side of an existing 1.2m REVOLVE PU DB rack and adds 10 pairs of round dumbbells up to 70kg each across four shelves. It is the largest 1.2m extension in the family. Sharing the end frame of the rack it joins, it is shorter than a standalone unit at 1195mm and the run grows without a second complete rack.
The side frame is 75mm x 75mm mild steel tube with a powder coat finish. Its own branding plate and pre-drilled indicator holes match the host rack. Built by Bench in Thailand.
Features
- Adds 10 pairs of round dumbbells up to 70kg each
- 4 tiers, 1.2m shelves
- Bolts onto an existing 1.2m REVOLVE PU DB rack
- 75mm x 75mm mild steel tube side frame
- Powder coat finish
- Large branding plate and pre-drilled weight indicator holes
- 1195mm long, 836mm wide, 1303mm high, 106kg
Specifications
- Material
- 75mm x 75mm Mild Steel Tube
- Length
- 1195 mm (47 in)
- Width
- 836 mm (33 in)
- Height
- 1303 mm (51 in)
- Weight
- 106 kg (234 lb)
- SKU
- EL0038
Imperial figures are converted from the metric and rounded.
Customisation
- Frame colour chosen per order
- Your logo on a branding plate
REVOLVE
Bench Built 10 Year frame warranty
The welded steel frame — uprights, crossmembers and base — is covered for 10 years of full commercial use. Safeties, spotter arms, J-cups, pads and hardware carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.
10 yr frame (uprights and crossmembers) · 5 yr safeties, spotter arms, J-cups · 1 yr coatings, upholstery, hardware
Downloads
Australian designed. Built in our Rayong factories.
Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.
See how it is made
