REVOLVE

REVOLVE PU DB 2.2m 2 Tier Storage (10 Pairs)

REVOLVE PU DB 2.2m 2 Tier Storage (10 Pairs) – view 1 – Bench Fitness

30,275 ฿ THB

VAT inc.

Made to order, enquire for lead time

Our sales team will come back to you within one business day.

  • Made to Order. Enquire for leadtime
  • 10 pairs in the single-tier footprint
  • Rated for dumbbells up to 70kg per hand
  • 2.2m extensions bolt on as the gym grows

Australian designed

Equipping gyms in 20+ countries

Custom colours and branding available

Description

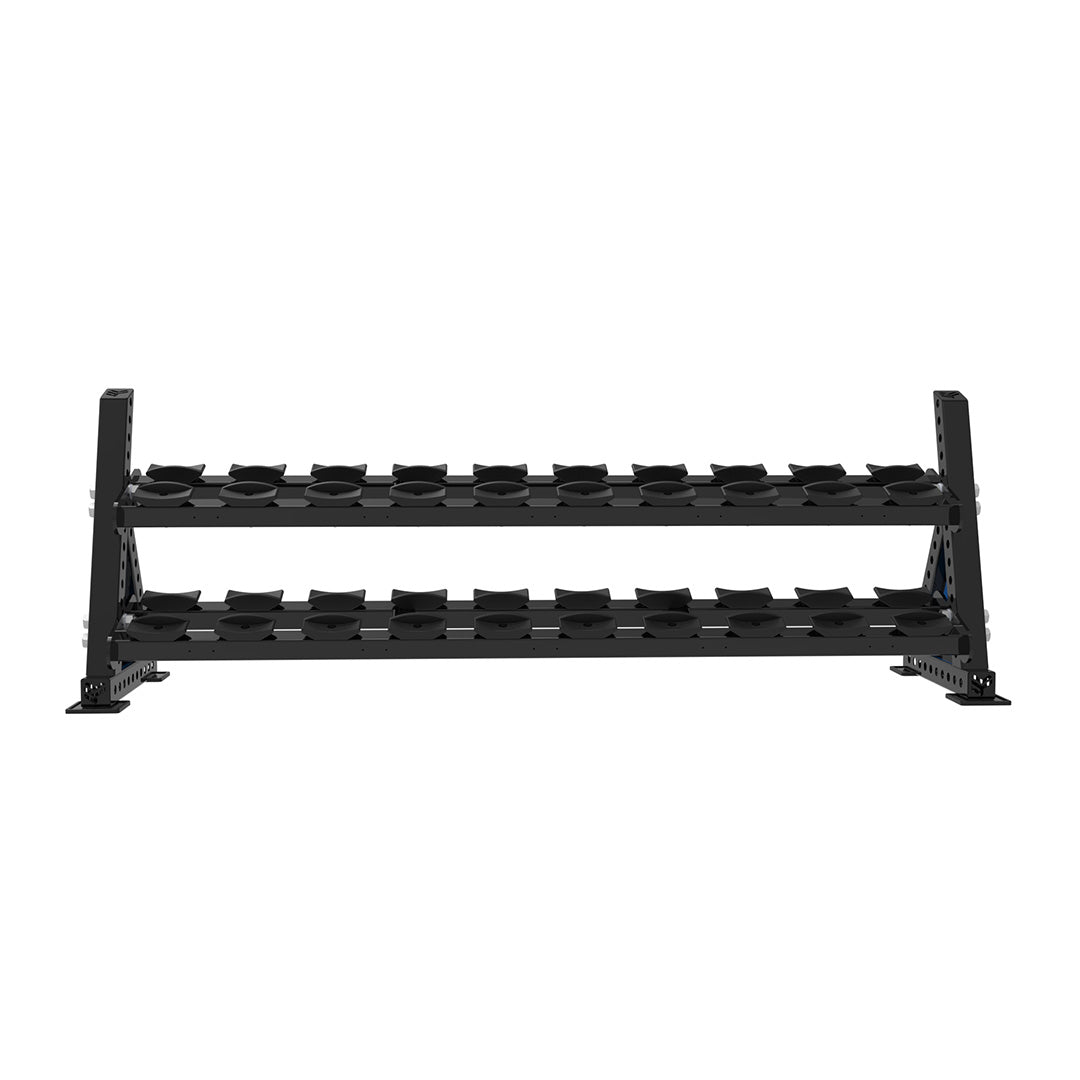

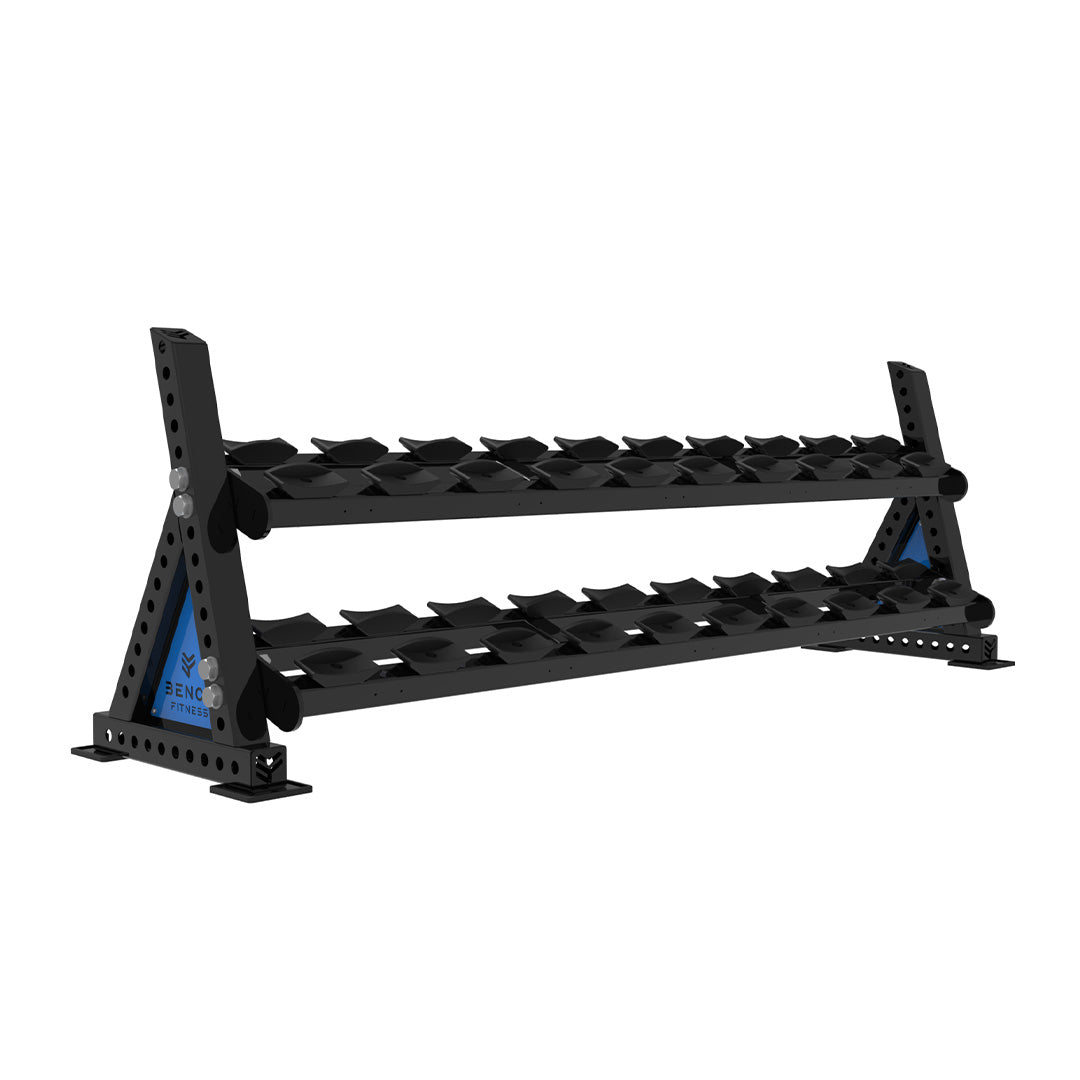

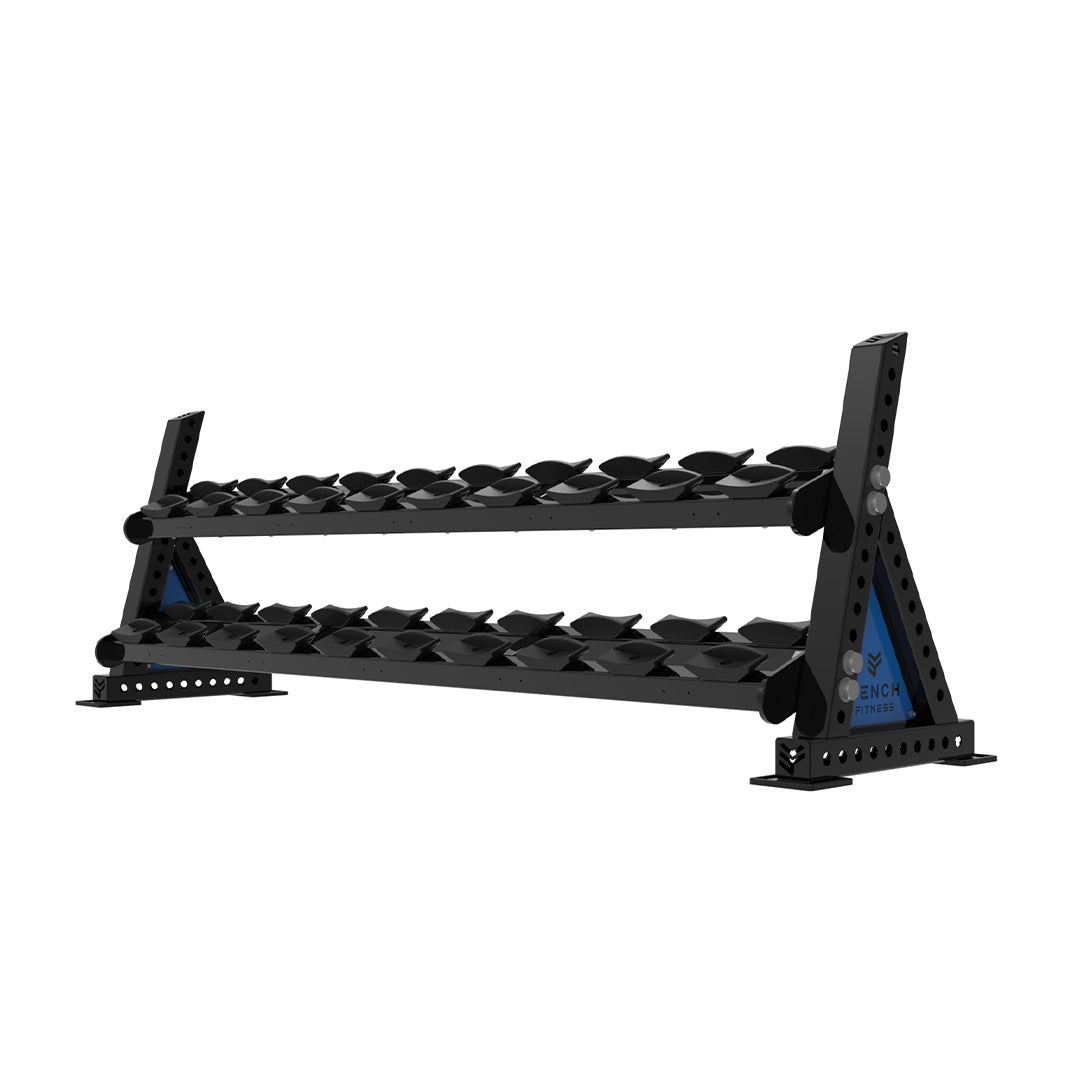

Two-tier 2.2m rack for 10 pairs of round dumbbells in commercial gyms.

The 2.2m 2 Tier Storage holds 10 pairs of round dumbbells up to 70kg each across two long shelves, in the same 2430mm by 646mm footprint as the single-tier unit.

The side frames are 75mm x 75mm mild steel tube with a powder coat finish. A large branding plate carries the gym's name or logo, and the shelves are pre-drilled for optional stainless steel weight indicators. Matching 2.2m extensions bolt on. Built by Bench in Thailand.

Features

  • Holds 10 pairs of round dumbbells up to 70kg each
  • 2 tiers, 2.2m shelves
  • 75mm x 75mm mild steel tube side frames
  • Powder coat finish
  • Large branding plate
  • Pre-drilled for optional stainless steel weight indicators
  • 2430mm long, 646mm wide, 833mm high, 101kg

Specifications

Material
75mm x 75mm Mild Steel Tube
Length
2430 mm (96 in)
Width
646 mm (25 in)
Height
833 mm (33 in)
Weight
101 kg (223 lb)
SKU
EL0040

Imperial figures are converted from the metric and rounded.

Customisation

  • Frame colour chosen per order
  • Your logo on a branding plate
Colours and custom options

REVOLVE

Bench Built 10 Year frame warranty

The welded steel frame — uprights, crossmembers and base — is covered for 10 years of full commercial use. Safeties, spotter arms, J-cups, pads and hardware carry their own periods. Because we build it, Bench-made spare parts are produced in our own factory to the same drawings, and we support parts for at least 10 years after a model is discontinued.

10 yr frame (uprights and crossmembers) · 5 yr safeties, spotter arms, J-cups · 1 yr coatings, upholstery, hardware

Download warranty Read the full warranty

Downloads

Australian designed. Built in our Rayong factories.

Bench is a manufacturer. Over 80% of what we sell is designed by our own engineers and built at our own factories in Rayong - laser cut, welded, powder coated and assembled. For the rest, we choose the specialist suppliers ourselves and hold them to the same specification.

See how it is made
